ANALOG DEVICES AD8390AACPZ-R7 差分放大器, 高输出电流, 3 放大器, 1 mV, 45 MHz, -40 °C, 85 °C
GENERAL DESCRIPTION
The AD8390A is a high output current, low power consumption differential amplifier. It is particularly well suited for the central office CO driver interface in digital subscriber line systems such as ADSL and ADSL2+. In full bias operation, the driver delivers 20.4 dBm output power into low resistance loads while compensating for hybrid and transformer insertion losses and back termination resistors.

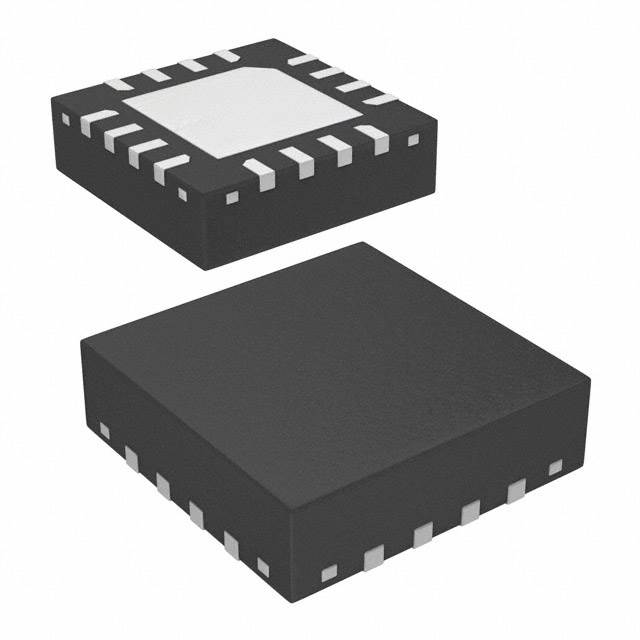

The AD8390A is available in a thermally enhanced LFCSP package 16-lead LFCSP. Significant control and flexibility in bias current have been designed into the AD8390A.
Four power modes are selectable via two digital inputs, PD0 and PD1, providing three levels of driver bias and one power-down state. In addition, the IADJ pin is available for fine quiescent current trimming to tailor the performance of the AD8390A.
The low power consumption, high output current, high output voltage swing, and robust thermal packaging enable the AD8390A to be used as the central office line driver in ADSL, ADSL2+, and proprietary xDSL systems, as well as in other high current applications requiring a differential amplifier.
FEATURES
Voltage feedback amplifier
Ideal for ADSL and ADSL2+ central office CO and customer premises equipment CPE applications
Enables high current differential applications
Low power operation
Single- or dual-supply operation from 10 V ± 5 V up to 24 V ± 12 V
5.5 mA total quiescent supply current for full power ADSL and ADSL2+ CO applications
Adjustable supply current to minimize power consumption
High output voltage and current drive
400 mA peak output drive current
44 V p-p differential output voltage
Low distortion
−70 dBc MTPR, 26 kHz to 1.1 MHz
−65 dBc MTPR, 1.1 MHz to 2.2 MHz
High speed: 260 V/μs differential slew rate
APPLICATIONS
ADSL/ADSL2+ CO and CPE line drivers
xDSL line drivers
High current differential amplifiers
输出电流 400 mA
供电电流 10 mA
电路数 1
通道数 1
针脚数 16
带宽 45 MHz
转换速率 260 V/μs
输入补偿电压 1 mV
输入偏置电流 4 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 60 MHz
电源电压Max 20V ~ 30V
电源电压Min 10 V
安装方式 Surface Mount
引脚数 16
封装 LFCSP-16
长度 4 mm
宽度 4 mm
高度 0.83 mm
封装 LFCSP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8390AACPZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD8390AACPZ-R2 亚德诺 | 完全替代 | AD8390AACPZ-R7和AD8390AACPZ-R2的区别 |
AD8390AACPZ-RL 亚德诺 | 完全替代 | AD8390AACPZ-R7和AD8390AACPZ-RL的区别 |
AD8390ACPZ-REEL7 亚德诺 | 功能相似 | AD8390AACPZ-R7和AD8390ACPZ-REEL7的区别 |
