Product Details
The AD8655/AD8656 are the industry’s lowest noise, precision CMOS amplifiers. They leverage the Analog Devices DigiTrim® technology to achieve high dc accuracy.
The AD8655/AD8656 provide low noise 2.7 nV/√Hz at 10 kHz, low THD + N 0.0007%, and high precision performance 250 μV max over VCM to low voltage applications. The ability to swing rail-to-rail at the input and output enables designers to buffer analog-to-digital converters ADCs and other wide dynamic range devices in single-supply systems.
The high precision performance of the AD8655/AD8656 improves the resolution and dynamic range in low voltage applications. Audio applications, such as microphone pre-amps and audio mixing consoles, benefit from the low noise, low distortion, and high output current capability of the AD8655/AD8656 to reduce system level noise performance and maintain audio fidelity. The high precision and rail-to-rail input and output of the AD8655/ AD8656 benefit data acquisition, process controls, and PLL filter applications.
The AD8655/AD8656 are fully specified over the −40°C to +125°C temperature range. The AD8655/AD8656 are available in Pb-free, 8-lead MSOP and SOIC packages. The AD8655/ AD8656 are both available for automotive applications.
**Applications**
### Features and Benefits
2.7 nV/√rHz @ f = 10 kHz
250 μV max over Vcm
0.4 μV/°C typ and 2.3 μV/°C max
输出电流 220mA @5V
供电电流 3.7 mA
电路数 2
通道数 2
针脚数 8
共模抑制比 85 dB
输入电容 16.7 pF
带宽 28 MHz
转换速率 11.0 V/μs
增益频宽积 28 MHz
输入阻抗 1.00 MΩ
输入补偿电压 50 µV
输入偏置电流 1 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 28 MHz
共模抑制比Min 85 dB
电源电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 8

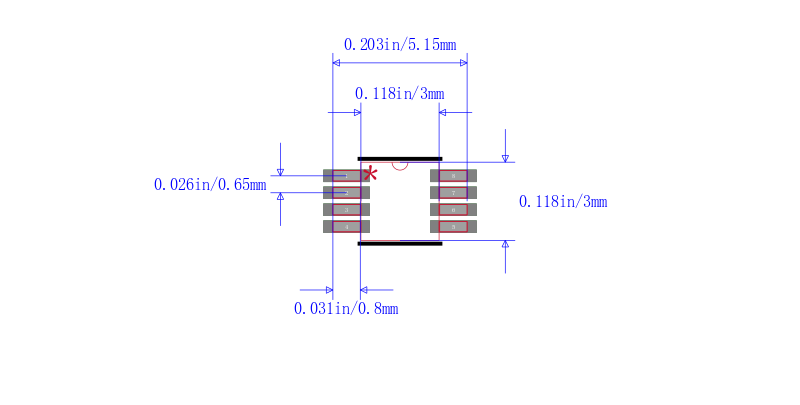

封装 MSOP-8
长度 3.2 mm
宽度 3.2 mm
高度 0.95 mm
封装 MSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
军工级 No
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8656ARMZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
AD8656ARZ 亚德诺 | 完全替代 | AD8656ARMZ-REEL和AD8656ARZ的区别 |
AD8656ARMZ-R2 亚德诺 | 完全替代 | AD8656ARMZ-REEL和AD8656ARMZ-R2的区别 |
AD8656ARMZ 亚德诺 | 类似代替 | AD8656ARMZ-REEL和AD8656ARMZ的区别 |
