20レA最大,轨至轨I / O,零输入交越失真放大器 20 レA Maximum, Rail-to-Rail I/O, Zero Input Crossover Distortion Amplifiers
Product Details
The AD8505/AD8506/AD8508 are single, dual, and quad micro-power amplifiers featuring rail-to-rail input/output swings while operating from a single 1.8 V to 5 V power supply or from dual ±0.9 V to ±2.5 V power supplies. Using a new circuit technology, these amplifiers offer zero input crossover distortion excellent PSRR and CMRR performance and low bias current while operating with a supply current of less than 20 μA per amplifier. This amplifier family offers the lowest noise in its power class.
This combination of features makes the AD8505/AD8506/AD8508 amplifiers ideal choices for battery-powered applications because they minimize errors due to power supply voltage variations over the lifetime of the battery and maintain high CMRR even for a rail-to-rail input op amp. Remote battery-powered sensors, handheld instrumentation, consumer equipment, hazard detection for example, smoke, fire, and gas, and patient monitors can benefit from the features of the AD8505/AD8506/AD8508 amplifiers.
The AD8505/AD8506/AD8508 are specified for both the industrial temperature range of −40°C to +85°C and the extended industrial temperature range of −40°C to +125°C. The AD8505 single ampli-fier is available in a tiny 5-lead SOT-23 package. The AD8506 dual amplifier is available in 8-lead MSOP and 8-ball WLCSP packages. The AD8508 quad amplifier is available in 14-lead TSSOP and 14-ball WLCSP packages. The AD8505/AD8506/AD8508 are members of a growing series of zero crossover distortion op amps offered by Analog Devices, Inc., including the ADA4505-1/ ADA4505-2/ADA4505-4, that operate from a single 1.8 V to 5 V supply or from dual ±0.9 V to ±2.5 V power supplies.
**Applications**
* Pressure and position sensors
* Remote security
* Bio sensors
* IR thermometers
* Battery-powered consumer equipment
* Hazard detectors
### Features and Benefits
供电电流 15 µA
电路数 4
共模抑制比 105 dB
输入电容 4.20 pF
增益频宽积 95 kHz
输入补偿电压 500 µV
输入偏置电流 1 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
共模抑制比Min 90 dB
安装方式 Surface Mount

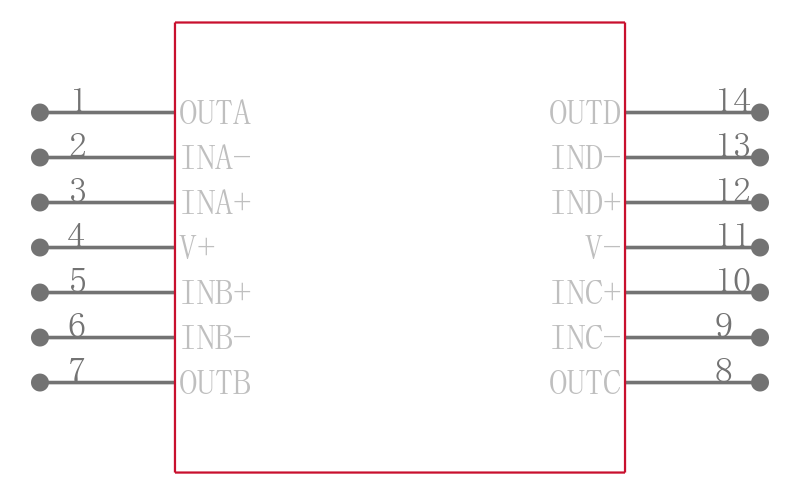

引脚数 14

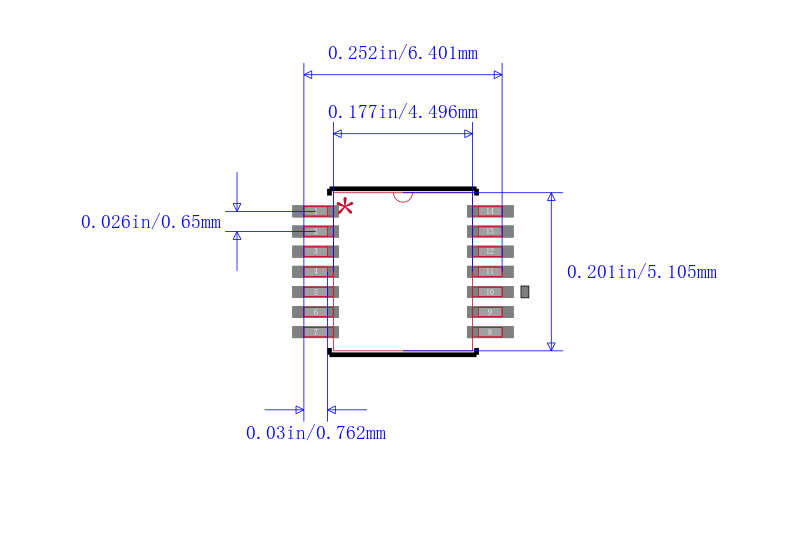

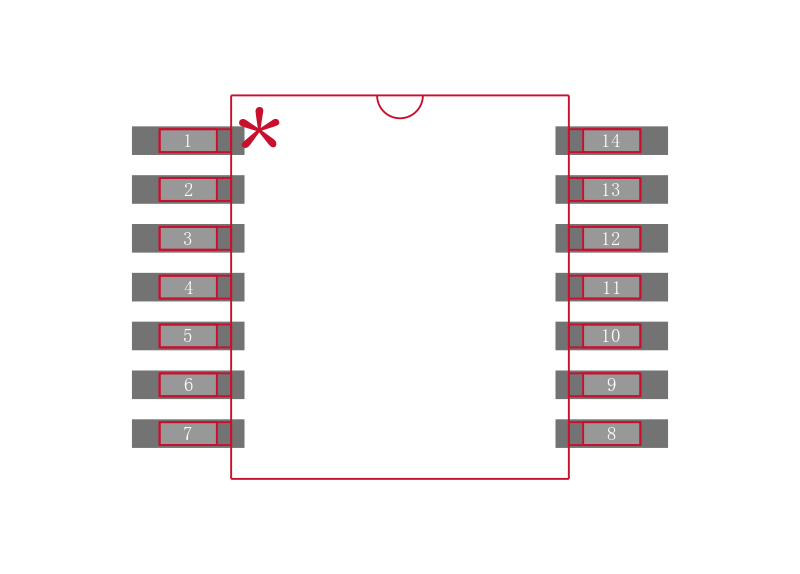

封装 TSSOP-14
长度 5 mm
宽度 4.4 mm
高度 1 mm
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8508ARUZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
AD8508ARUZ 亚德诺 | 类似代替 | AD8508ARUZ-REEL和AD8508ARUZ的区别 |
