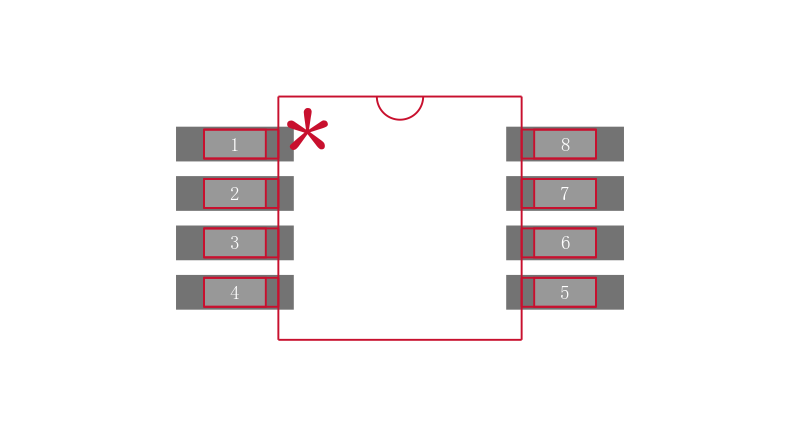

AD8130ARM

低成本的270 MHz差分接收器放大器 Low-Cost 270 MHz Differential Receiver Amplifiers

Product Details

The AD8129/AD8130 are designed as receivers for the transmission of high speed signals over twisted-pair cables to work with the AD8131 or AD8132 drivers. Either can be used for analog or digital video signals and for high speed data transmission.

The AD8129/AD8130 are differential-to-single-ended amplifiers with extremely high CMRR at high frequency. Therefore, they can also be effectively used as high speed instrumentation amps or for converting differential signals to single-ended signals.

### Features and Benefits

.

High Speed

AD8130: 270 MHz, 1090 V/µs @ G = +1

AD8129: 200 MHz, 1060 V/µs @ G = +10

.

High CMRR

94 dB min, dc to 100 kHz

80 dB min @ 2 MHz

70 dB @ 10 MHz

.

High input impedance: 1 MΩ differential

.

Low noise

AD8130: 12.5 nV/√Hz

AD8129: 4.5 nV/√Hz

.

Input common-mode range ±10.5 V

.

Low distortion, 1 V p-p @ 5 MHz:

AD8130, -79 dBc worst harmonic @ 5 MHz

AD8129, -74 dBc worst harmonic @ 5 MHz

.

User-adjustable gain

No external components for G = +1

.

Power supply range +4.5 V to ±12.6 V

.

Power-down
