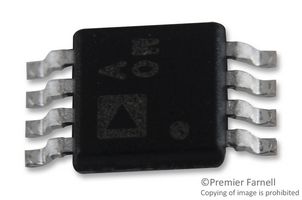

AD8672ARMZ

ANALOG DEVICES  AD8672ARMZ  运算放大器, 双路, 10 MHz, 2个放大器, 4 V/µs, ± 5V 至 ± 15V, MSOP, 8 引脚

The is a very high precision dual Operational Amplifier features very low noise, very low offset voltage and drift, low input bias current and low power consumption. Outputs are stable with capacitive loads of over 1000pF. Supply current is less than 3mA per amplifier at 30V. The AD8671 is combination of ultralow noise, high precision, speed and stability is unmatched. The MSOP version of the AD8671 requires only half the board space of comparable amplifier. Applications for this amplifier include high quality PLL filters, precision filters and analytical instrumentation, precision power supply controls, ATE, data acquisition and precision controls.

.

Unity-gain stable

.

No phase reversal

.

2.8nV/√Hz, 77nVp-p Very low noise

.

12nA Maximum low input bias current

.

75µV Maximum low offset voltage

.

120dB Minimum high open-loop gain

.

3mA/amplifier Typical low supply current

ESD sensitive device, electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.
