ADA4528-2ARMZ-RL

高精度，超低噪声， RRIO ，零漂移运算放大器 Precision, Ultralow Noise, RRIO, Zero-Drift Op Amp

Product Details

The ADA4528-1/ADA4528-2 are ultralow noise, zero-drift operational amplifiers featuring rail-to-rail input and output swing. With an offset voltage of 2.5 μV, offset voltage drift of 0.015 μV/°C, and typical noise of 97 nV p-p 0.1 Hz to 10 Hz, AV = +100, the ADA4528-1/ADA4528-2 are well suited for applications in which error sources cannot be tolerated.

The ADA4528-1/ADA4528-2 have a wide operating supply range of 2.2 V to 5.5 V, high gain, and excellent CMRR and PSRR specifications, which make it ideal for applications that require precision amplification of low level signals, such as position and pressure sensors, strain gages, and medical instrumentation.

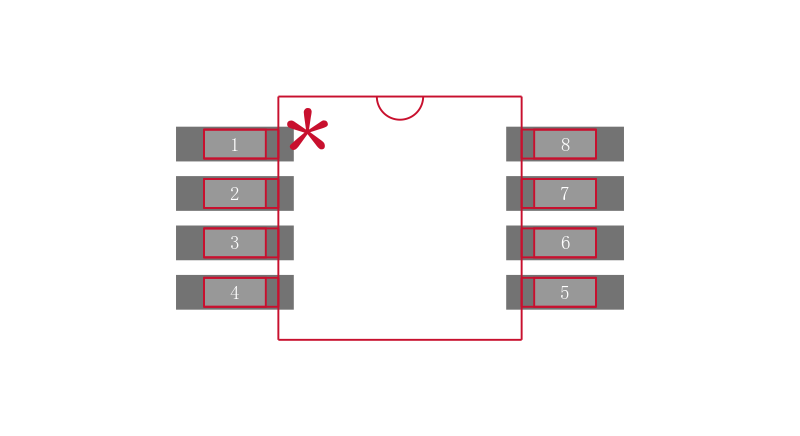

The ADA4528-1/ADA4528-2 are specified over the extended industrial temperature range −40°C to +125°C. The ADA4528-1 and ADA4528-2 are available in 8-lead MSOP and 8-lead LFCSP packages.

For more information about the ADA4528-1/ADA4528-2, see the AN-1114 Application Note, _Lowest Noise Zero-Drift Amplifier Has 5.6 nV/√Hz Voltage Noise Density_.

**Applications**

.

Thermocouple/thermopile

.

Load cell and bridge transducers

.

Precision instrumentation

.

Electronic scales

.

Medical instrumentation

.

Handheld test equipment

### Features and Benefits

.

Low offset voltage: 2.5 µV maximum

.

Low offset voltage drift: 0.015 μV/°C maximum

.

Low noise

.

5.6 nV/√Hz at f = 1 kHz, AV = +100

.

97 nV p-p at f = 0.1 Hz to 10 Hz, AV = +100

.

Open-loop gain: 130 dB minimum

.

CMRR: 135 dB minimum

.

PSRR: 130 dB minimum

.

Unity-gain crossover: 4 MHz

.

Gain bandwidth product: 3 MHz at AV = +100

.

−3 dB closed-loop bandwidth: 6.2 MHz

.

See data sheet for additional features

**ADA4528-2 Supports defense and aerospace applications ADEQ standard**

.

Download ADA4528-2-EP Data Sheet pdf

.

Extended industrial temperature range: −55°C to +125°C

.

Controlled manufacturing baseline

.

1 assembly/test site

.

1 fabrication site

.

Product change notification

.

Qualification data available upon request

.

V62/16615 DSCC Drawing Number
