低成本，高速差分放大器 Low Cost, High Speed Differential Amplifier
Analog Devices brings you their latest differential amplifier differential amplifier, a component that can be used to output a better quality sound than a mono amplifier. It has a differential output. Its maximum power dissipation is 250 mW. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±1.35 V and maximum of ±5.5 V. This part has a temperature range of -40 °C to 125 °C. This device uses one or two power supplies. It has a single channel per chip.
输出电流 50mA @5V
供电电流 12 mA
电路数 1
通道数 1
耗散功率 0.25 W
共模抑制比 70 dB
转换速率 1.20 kV/μs
输入补偿电压 1 mV
输入偏置电流 3 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 360 MHz
耗散功率Max 250 mW
共模抑制比Min 60dB ~ 75dB
电源电压Max 10V ~ 15V
电源电压Min 2.8 V
安装方式 Surface Mount

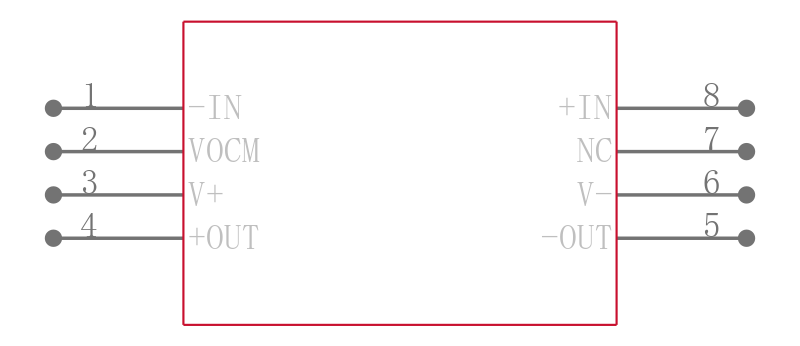

引脚数 8

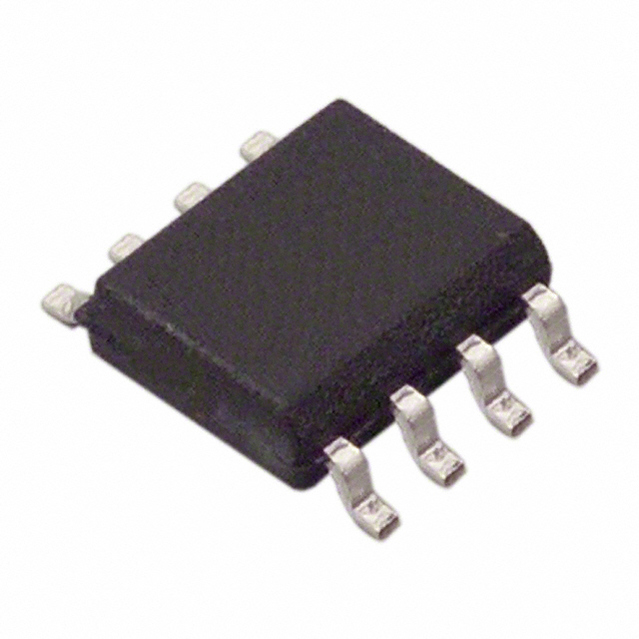

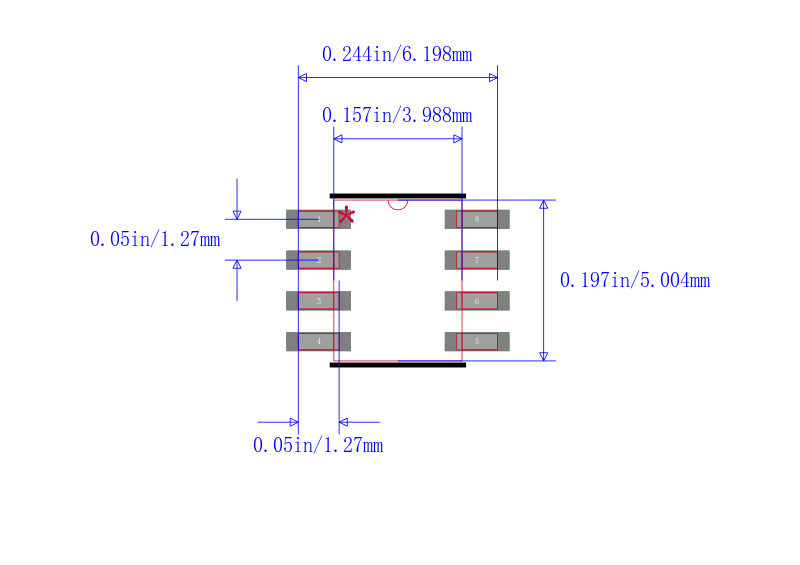

封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD8132AR ADI 亚德诺 | 当前型号 | 当前型号 |
AD8132WARMZ-R7 亚德诺 | 完全替代 | AD8132AR和AD8132WARMZ-R7的区别 |
AD8132ARZ-RL 亚德诺 | 完全替代 | AD8132AR和AD8132ARZ-RL的区别 |
AD8132AR-REEL 亚德诺 | 完全替代 | AD8132AR和AD8132AR-REEL的区别 |
