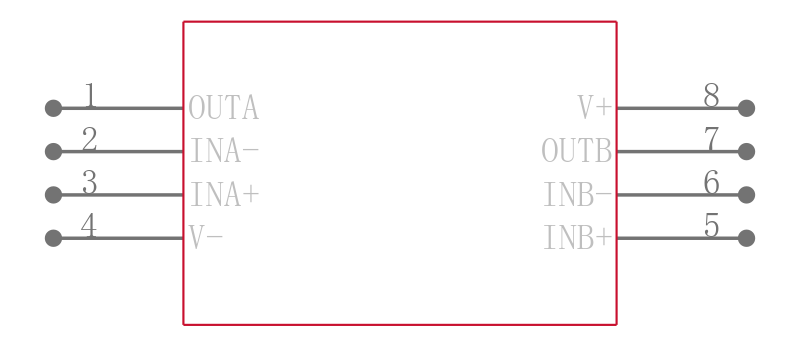

ADA4091-2ARZ-R7

精密微功耗， OVP ， RRIO运算放大器 Precision Micropower, OVP, RRIO Operational Amplifier

GENERAL DESCRIPTION

The ADA4091-2 dual and ADA4091-4 quad are micropower, single-supply, 1.2 MHz bandwidth amplifiers featuring rail-to rail inputs and outputs. They are guaranteed to operate from a +2.7 V to +30 V single supply as well as from ±1.35 V to ±15 V dual supplies.

The ADA4091 family features a unique input stage that allows the input voltage to exceed either supply safely without any phase reversal or latch-up; this is called overvoltage protection, or OVP.

FEATURES

  Single-supply operation: 2.7 V to 36 V

  Wide input voltage range

  Rail-to-rail output swing

  Low supply current: 200 µA/amplifier

  Wide bandwidth: 1.2 MHz

  Slew rate: 0.46 V/µs

  Low offset voltage: 250 µV maximum

  No phase reversal

  Overvoltage protection OVP

     25 V above/below supply rails at ±5 V

     12 V above/below supply rails at ±15 V

APPLICATIONS

  Industrial process control

  Battery-powered instrumentation

  Power supply control and protection

  Telecommunications

  Remote sensors

  Low voltage strain gage amplifiers

  DAC output amplifiers
