500兆赫,G = 1和2三路视频缓冲器,具有禁用 500 MHz, G = 1 and 2 Triple Video Buffers with Disable
Product Details
The AD8074 /AD8075 are high-speed triple video buffers with a G = +1 and +2 respectively. They operate on ±5V and have a -3dB full signal bandwidth in excess of 500MHz, along with slew rates in excess of 1350V/µs. With better than -80dB of all hostile crosstalk and 90dB isolation, they are useful in many high-speed applications. The differential gain and differential phase error are 0.01% and 0.01°. Gain Flatness of 0.1dB up to 70MHz make the AD8074/75 ideal for RGB buffering or driving. They consume less than 30mA on a ±5V supply voltage.
Both devices offer a high-speed disable feature that allows the outputs to be put into a high impedance state. This allows the building of larger input arrays while minimizing "OFF" channel output loading. The AD8074/75 are offered in a 16 lead TSSOP package.
### Features and Benefits
600 MHz bandwidth –3 dB 200 mV p-p
500 MHz bandwidth –3 dB 2 V p-p
1600 V/µs slew rate, G = +1
1350 V/µs slew rate, G = +2
RL = 150 Ω:
Gain flatness of 0.1 dB to 50 MHz
0.01% differential gain error
0.01° differential phase error
–80 dB @ 10 MHz
–50 dB @ 100 MHz
供电电流 24 mA
电路数 3
通道数 3
耗散功率 1000 mW
静态电流 4.00 mA
输入电容 1.50 pF
转换速率 1.35 kV/μs
增益频宽积 550 MHz
输入阻抗 10.0 MΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 550 MHz
耗散功率Max 1000 mW
安装方式 Surface Mount
引脚数 16

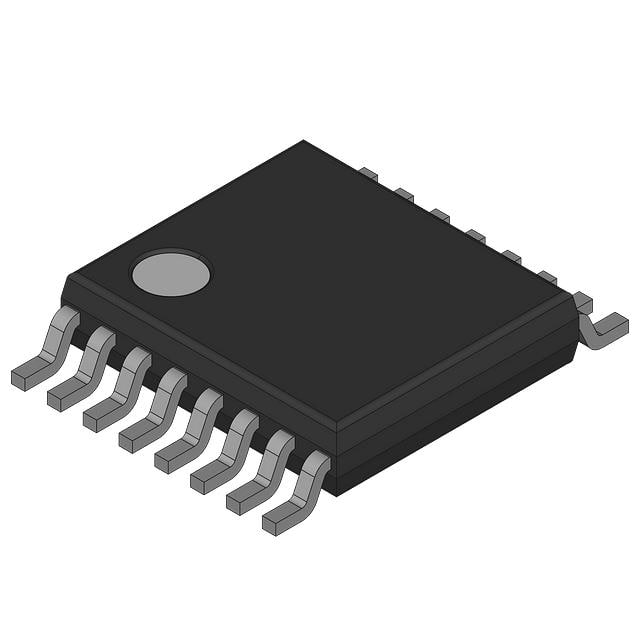

封装 TSSOP-16
长度 5 mm
宽度 4.4 mm
高度 1.05 mm
封装 TSSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 缓冲器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8075ARUZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
AD8075ARU 亚德诺 | 完全替代 | AD8075ARUZ-REEL和AD8075ARU的区别 |
AD8075ARU-REEL7 亚德诺 | 完全替代 | AD8075ARUZ-REEL和AD8075ARU-REEL7的区别 |
AD8075ARU-REEL 亚德诺 | 完全替代 | AD8075ARUZ-REEL和AD8075ARU-REEL的区别 |
