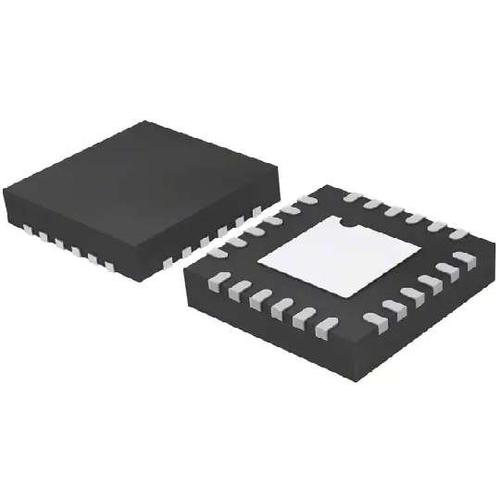

AD8003ACPZ-REEL7

三重， 1.5 GHz的运算放大器 Triple, 1.5 GHz Op Amp

* High speed * 1650 MHz G = +1 * 730 MHz G = +2, VO = 2 V p-p * 4300 V/µs G = +2, 4 V step * Settling time 12 ns to 0.1%, 2 V step * Excellent for QXGA resolution video * Gain flatness 0.1 dB to 190 MHz * 0.05% differential gain error, RL = 150 Ω * 0.01° differential phase error, RL = 150 Ω * Low voltage offset: 0.7 mV typical * Low input bias current: 7 µA typical * Low noise: 1.8 nV/√Hz * Low distortion over wide bandwidth: SFDR-73 dBc @ 20 MHz * High output drive: 100 mA output load drive * Supply operation: +5 V to ±5 V voltage supply * Supply current: 9.5 mA/amplifier
