超快, 4 ns单电源比较器 Ultrafast, 4 ns Single-Supply Comparators
Product Details
The AD8611/AD8612 are single and dual 4 ns comparators with latch function and complementary output. The latch is not functional if VCC is less than 4.3 V.
Fast 4 ns propagation delay makes the AD8611/AD8612 good choices for timing circuits and line receivers. Propagation delays for rising and falling signals are closely matched and tracked over temperature. This matched delay makes the AD8611/AD8612 good choices for clock recovery because the duty cycle of the output matches the duty cycle of the input.
The AD8611 has the same pinout as the LT1016 and LT1394, with lower supply current and a wider common-mode input range, which includes the negative supply rail.
The AD8611/AD8612 are specified over the industrial temperature range −40°C to +85°C. The AD8611 is available in both 8-lead MSOP and narrow 8-lead SOIC surface-mount packages. The AD8612 is available in a 14-lead TSSOP surface-mount package.
Applications
### Features and Benefits
供电电流 10 mA
电路数 1
通道数 1
耗散功率 50 mW
共模抑制比 85 dB
输入补偿电压 7 mV
输入偏置电流 4000 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5 V
电源电压Min 3 V
安装方式 Surface Mount

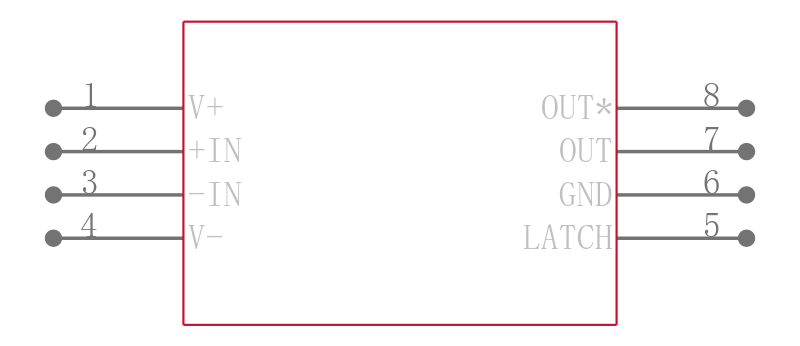

引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8611AR ADI 亚德诺 | 当前型号 | 当前型号 |
AD8611ARZ 亚德诺 | 类似代替 | AD8611AR和AD8611ARZ的区别 |
AD8611ARZ-REEL7 亚德诺 | 类似代替 | AD8611AR和AD8611ARZ-REEL7的区别 |
AD8611AR-REEL 亚德诺 | 类似代替 | AD8611AR和AD8611AR-REEL的区别 |
