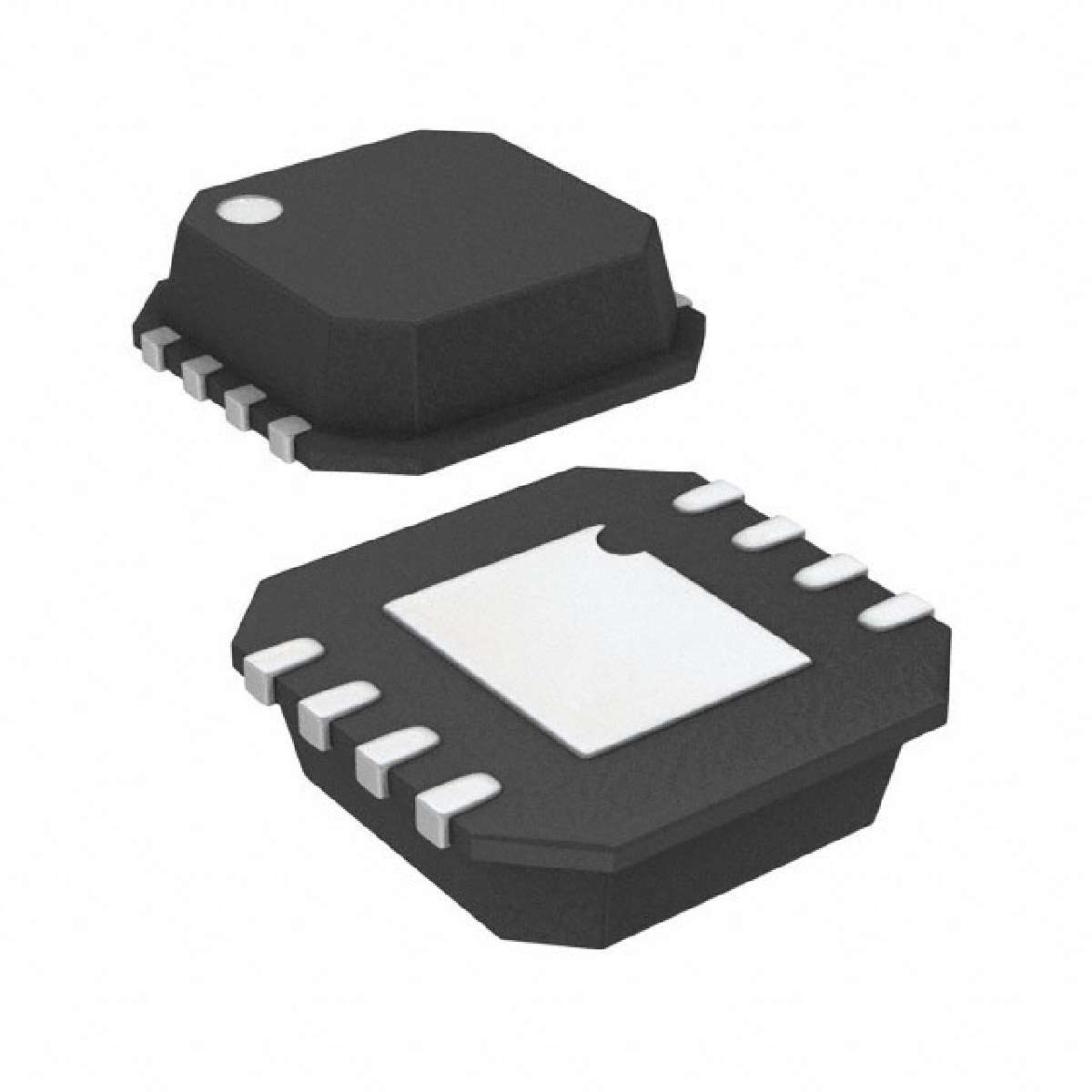

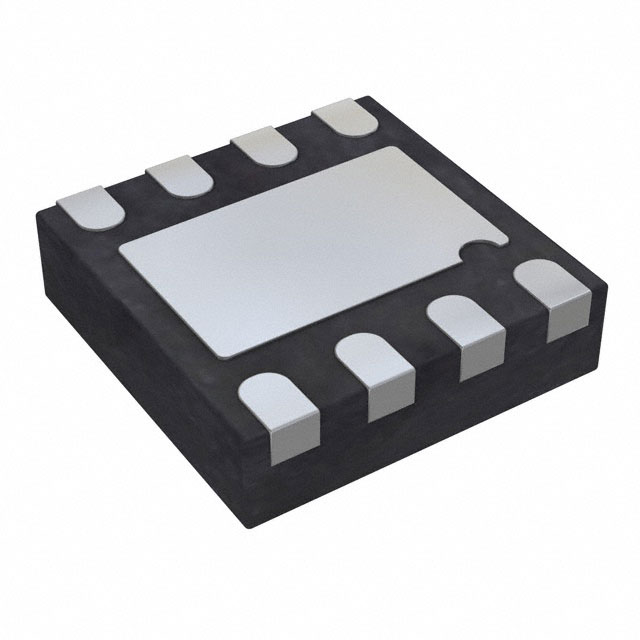

ADA4941-1YCPZ-RL

单电源，差分18位ADC驱动器 Single-Supply, Differential 18-Bit ADC Driver

GENERAL DESCRIPTION

The ADA4941-1 is a low power, low noise differential driver for ADCs up to 18 bits in systems that are sensitive to power. The ADA4941-1 is configured in an easy-to-use, single-ended-to differential configuration and requires no external components for a gain of 2 configuration. A resistive feedback network can be added to achieve gains greater than 2. The ADA4941-1 provides essential benefits, such as low distortion and high SNR, that are required for driving high resolution ADCs.

FEATURES

Single-ended-to-differential converter

Excellent linearity

  Distortion −110 dBc @100 KHz for VO, dm = 2 V p-p

Low noise: 10.2 nV/√Hz, output-referred, G = 2

Extremely low power: 2.2 mA 3 V supply

High input impedance: 24 MΩ

User-adjustable gain

High speed: 31 MHz, −3 dB bandwidth G = +2

Fast settling time: 300 ns to 0.005% for a 2 V step

Low offset: 0.8 mV max, output-referred, G = 2

Rail-to-rail output

Disable feature

Wide supply voltage range: 2.7 V to 12 V
