高电压,高精度运算放大器 High Voltage, Precision Operational Amplifier
Product Details
The ADA4700-1 is a high voltage, precision, single-channel operational amplifier with a wide operating voltage range ±5 V to ±50 V and relatively high output current drive. Its advanced design combines low power 170 mW for a ±50 V supply, high bandwidth 3.5 MHz, and a high slew rate with unity-gain stability and phase inversion free performance. The ability to swing near rail to rail at the output enables designers to maximize signal-to-noise ratios SNRs.
The ADA4700-1 is designed for applications requiring both ac and dc precision performance, making the ADA4700-1 useful in a wide variety of applications, including high voltage test equipment and instrumentation, high voltage regulators and power amplifiers, power supply control and protection, and as an amplifier or buffer for transducers with wide output ranges. It is particularly well suited for high intensity LED testing applications where it provides highly accurate voltage and current feedback as well as a predriver to provide accurate voltage and/or current sourcing stimulus to the LED string under test.

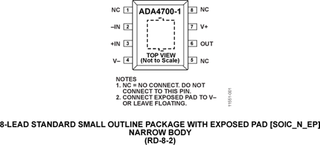

The ADA4700-1 is specified over the industrial temperature range of −40°C to +85°C and includes thermal regulation at a junction temperature greater than 145°C and an integrated current limit. The ADA4700-1 is available in a thermally enhanced, 8-lead SOIC package with an exposed pad.
**APPLICATIONS**
### Features and Benefits
≤0.2 mV typical
30 mA
3.5 MHz typical
-40° C to +85° C
≤ 15 nA typical
输出电流 50 mA
供电电流 1.7 mA
电路数 1
通道数 1
共模抑制比 108 dB
增益频宽积 3.5 MHz
输入补偿电压 200 µV
输入偏置电流 15 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 3.5 MHz
共模抑制比Min 86 dB
电源电压Max 50 V
电源电压Min 5 V
安装方式 Surface Mount

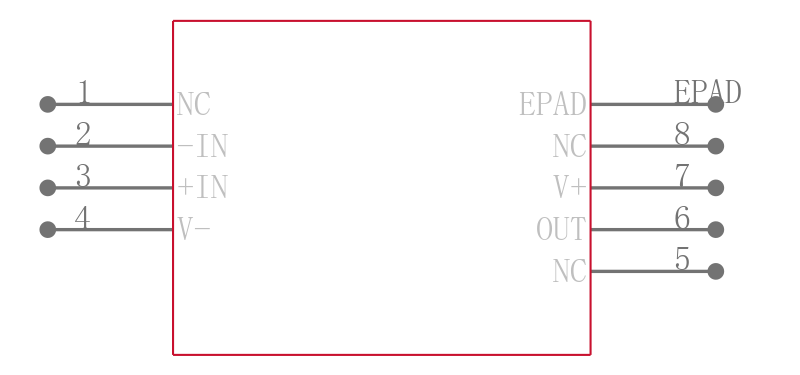

引脚数 8

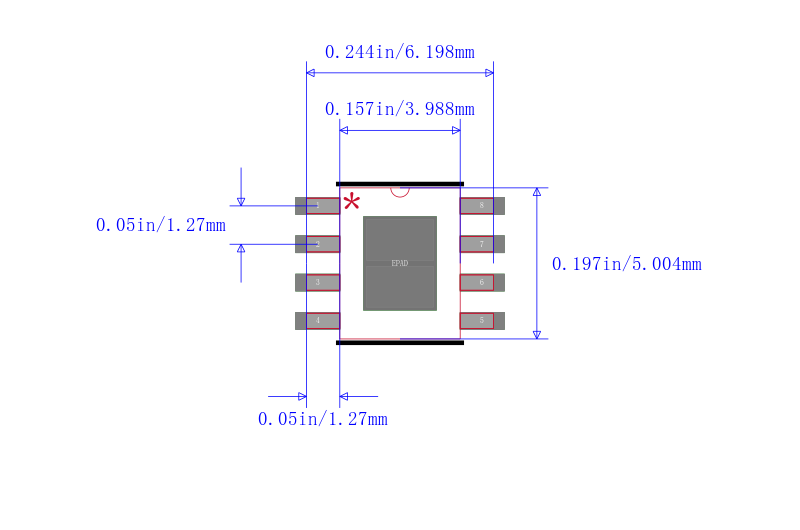

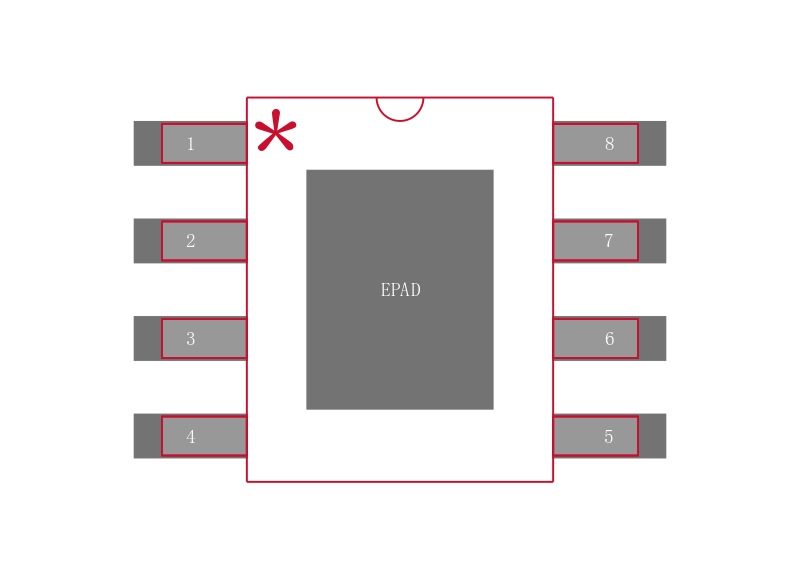

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADA4700-1ARDZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADA4700-1ARDZ 亚德诺 | 类似代替 | ADA4700-1ARDZ-R7和ADA4700-1ARDZ的区别 |
