ADL5323ACPZ-R7

1700兆赫到2400兆赫的GaAs匹配RF PA前置驱动器 1700 MHz to 2400 MHz GaAs Matched RF PA Predriver

Product Details

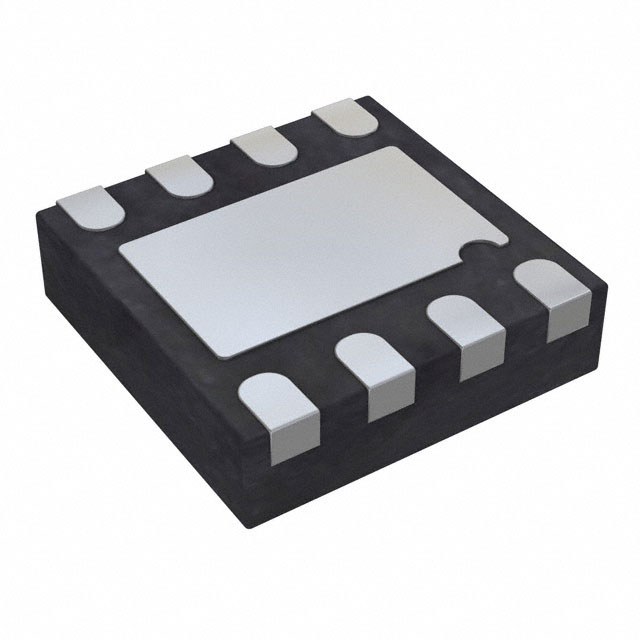

The ADL5323 is a high linearity GaAs driver amplifier that is internally matched to 50 Ω for operation in the 1700 MHz to 2400 MHz frequency range. The amplifier, which has a gain of 20 dB, has been specially designed for use in the output stage of a cellular base station radio or as an input preamplifier in a multicarrier base station power amplifier. Matching and biasing are all on-chip. The ADL5323 is available in a Pb-free, 3 mm × 3 mm, 8-lead LFCSP package with an operating temperature of -40°C to +85°C.

### Features and Benefits

.

GaAs single ended 20 dB fixed gain amplifier

.

Internally matched input and output to 50 Ω

.

Fully specified gain and output power over temperature and supply

.

Small footprint package 3 mm × 3 mm LFCSP

.

Operation from 1700 MHz to 2400 MHz

.

High third order intercept of +43 dBm

.

Output compression point of +28 dBm

.

Noise figure 5 dB

.

Pin compatible with ADL5322 700 MHz to 1000 MHz device
