ADN2890ACPZ-RL

SP Amp Limiting Amp Single 3.6V 16Pin LFCSP EP T/R

Product Details

The ADN2890 is a high gain, limiting amplifier optimized for use in SONET, Gigabit Ethernet GbE, and Fibre Channel optical receivers that accept input levels of up to 2.0 V p-p differential and have 3 mV p-p differential input sensitivity. The ADN2890 provides the receiver functions of quantization and loss of signal LOS detection. The ADN2890 can easily operate at up to 3.2 Gb/s to support LX4 transceivers.

The limiting amplifier also measures average received power based on a direct measurement of the photodiode current with better than 1 dB of accuracy over the entire input range of the receiver. This eliminates the need for external average Rx power detection circuitry in SFF-8472 compliant optical transceivers.

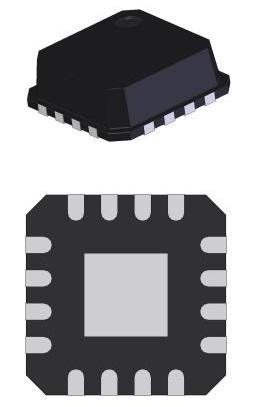

The ADN2890 limiting amplifier operates from a single 3.3 V supply, has low power dissipation, and is available in a space-saving 3 mm × 3 mm 16-lead lead frame chip scale package LFCSP.

**Applications**

.

SFP/SFF/GBIC optical transceivers

.

OC-3/12/48, GbE, Fibre Channel receivers

.

10GBASE-LX4 transceivers

.

WDM transponders

### Features and Benefits

.

SFP reference design available

.

Input sensitivity: 3 mV p-p

.

80 ps rise/fall times

.

CML outputs: 700 mV p-p differential

.

Programmable LOS detector: 2 mV to 13 mV

.

Rx signal strength indicator RSSI:

.

SFF-8472 compliant average power measurement

.

Single-supply operation: 3.3 V

.

Low power dissipation: 130 mW

.

Available in space-saving 3 mm × 3 mm 16-lead LFCSP
