AD8220BRMZ-R7

JFET输入仪表放大器具有轨到轨输出，采用MSOP封装 JFET Input Instrumentation Amplifier with Rail-to-Rail Output in MSOP Package

GENERAL DESCRIPTION

The AD8220 is the first single-supply JFET input instrumentation amplifier available in an MSOP package. Designed to meet the needs of high performance, portable instrumentation, the AD8220 has a minimum common-mode rejection ratio CMRR of 86 dB at dc and a minimum CMRR of 80 dB at 5 kHz for G = 1. Maximum input bias current is 10 pA and typically remains below 300 pA over the entire industrial temperature range. Despite the JFET inputs, the AD8220 typically has a noise corner of only 10 Hz.

FEATURES

Low input currents

   10 pA maximum input bias current B grade

   0.6 pA maximum input offset current B grade

High CMRR

   100 dB CMRR minimum, G = 10 B grade

   80 dB CMRR minimum to 5 kHz, G = 1 B grade

Excellent ac specifications and low power

   1.5 MHz bandwidth G = 1

   14 nV/√Hz input noise 1 kHz

   Slew rate 2 V/μs

   750 μA quiescent supply current maximum Versatile

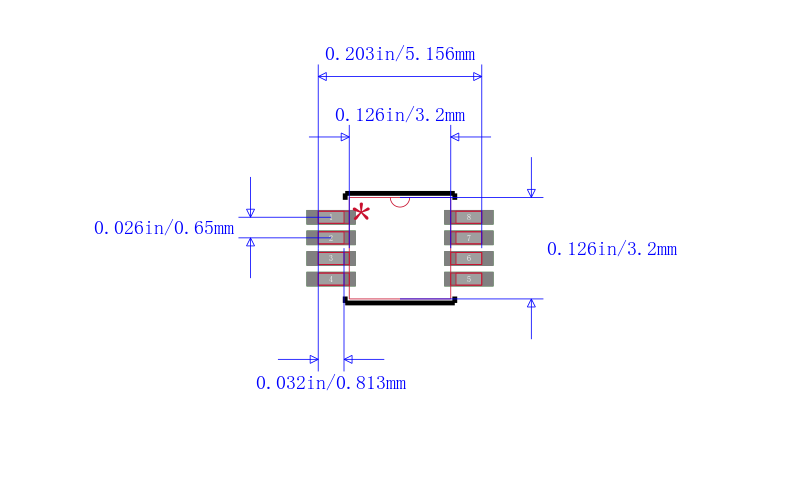

   MSOP package

   Rail-to-rail output

   Input voltage range to below negative supply rail

   4 kV ESD protection

   4.5 V to 36 V single supply

   ±2.25 V to ±18 V dual supply

   Gain set with single resistor G = 1 to 1000

APPLICATIONS

  Medical instrumentation

  Precision data acquisition

  Transducer interface
