AD713JRZ-16-REEL

精密，高速，的BiFET四通道运算放大器 Precision, High Speed, BiFET Quad Op Amp

Product Details

The AD713 is a quad operational amplifier, consisting of four AD711 BiFET op amps. These precision monolithic op amps offer excellent dc characteristics plus rapid settling times, high slew rates, and ample bandwidths. In addition, the AD713 provides the close matching ac and dc characteristics inherent to amplifiers sharing the same monolithic die. The single-pole response of the AD713 provides fast settling: l µs to 0.01%. This feature, combined with its high dc precision, makes the AD713 suitable for use as a buffer amplifier for 12- or 14-bit DACs and ADCs. It is also an excellent choice for use in active filters in 12-, 14- and 16-bit data acquisition systems. Furthermore, the AD713 low total harmonic distortion THD level of 0.0003% and very close matching ac characteristics make it an ideal amplifier for many demanding audio applications. The AD713 is internally compensated for stable operation at unity gain.

The AD713J is rated over the commercial temperature range of 0°C to 70°C. The AD713A is rated over the industrial temperature of −40°C to +85°C.

### Features and Benefits

.

DC PERFORMANCE

1.5 mV maximum offset voltage

8 µV/°C typical drift

150 V/mV minimum open-loop gain

2 µV p-p typical Noise, 0.1 Hz to 10 Hz

True 14-Bit Accuracy

Single Version: AD711

Dual Version: AD712

.

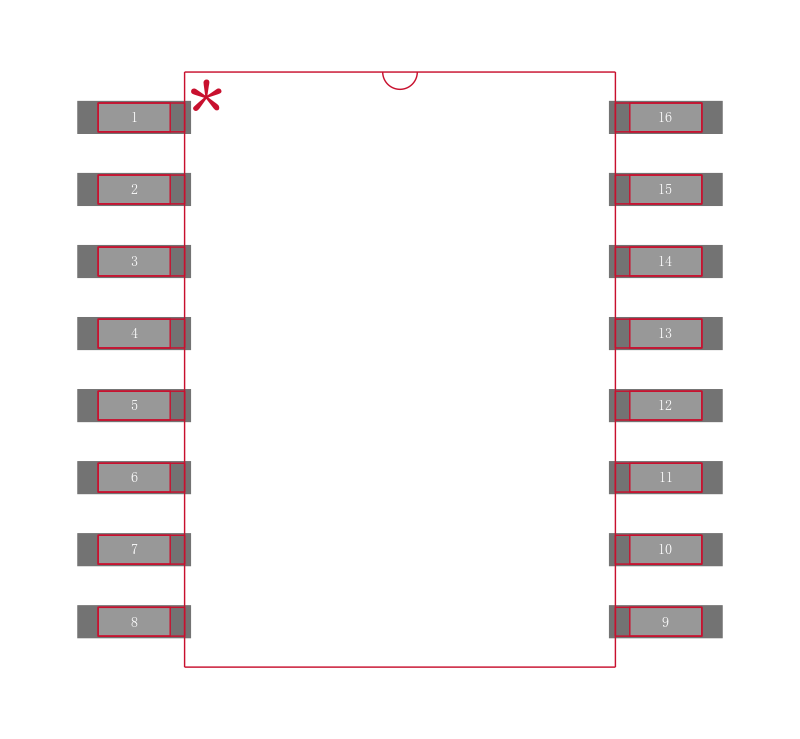

Available in 16-lead SOIC, 14-lead P-DIP and Hermetic Cerdip Packages

.

AC PERFORMANCE

1 µs Settling to 0.01% for 10 V Step

20 V/µs Slew Rate

0.0003% Total Harmonic Distortion THD

4 MHz Unity Gain Bandwidth
