AMP04FPZ

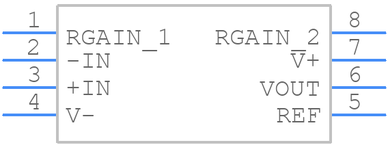

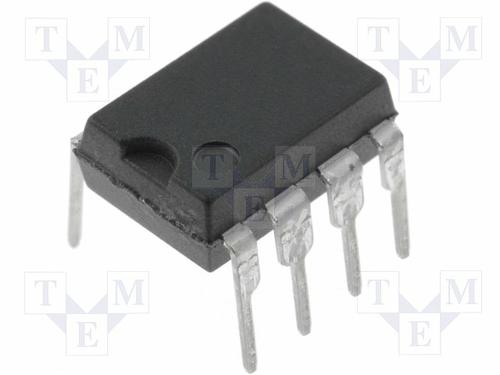

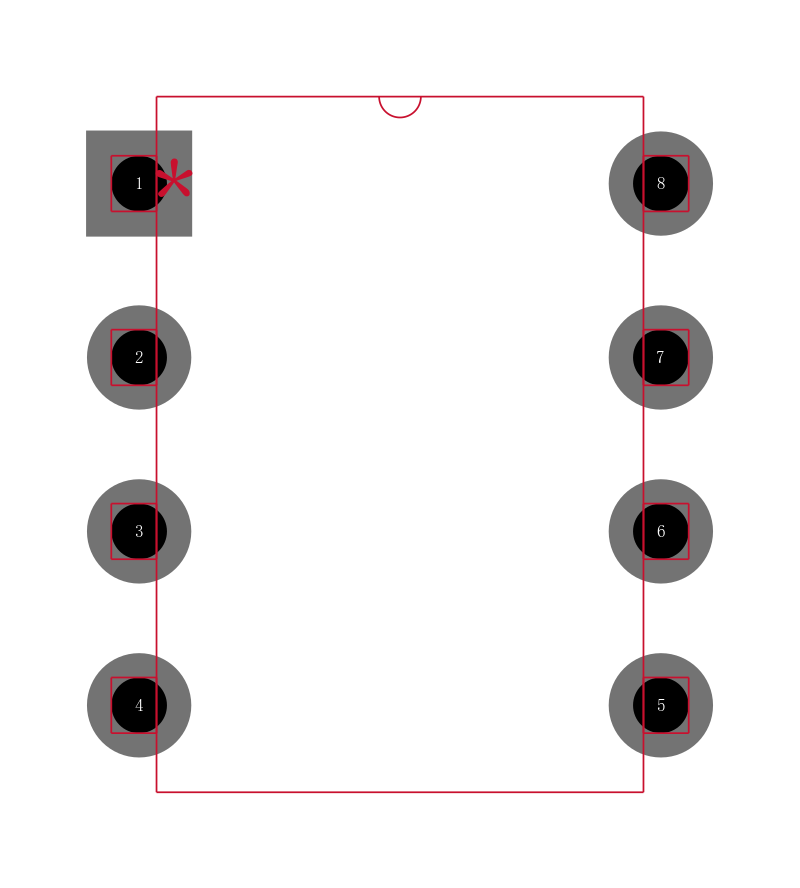

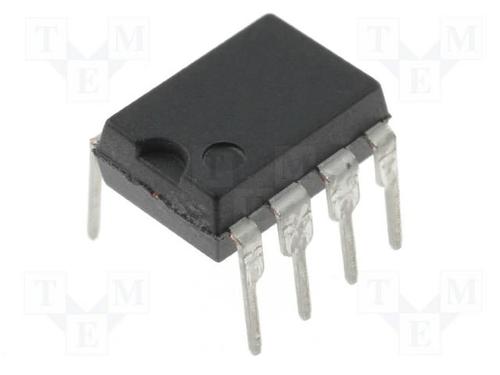

ANALOG DEVICES  AMP04FPZ  仪器放大器, 1个放大器, 600 µV, 700 kHz, ± 2.5V 至 ± 15V, DIP

The is a precision single-supply Instrumentation Amplifier designed to work over a +5V to ±15V supply range. It offers an excellent combination of accuracy, low power consumption, wide input voltage range and excellent gain performance. Gain is set by a single external resistor and can be from 1 to 1000. Input common-mode voltage range allows the AMP04 to handle signals with full accuracy from ground to within 1V of the positive supply. The output can swing to within 1V of the positive supply. Gain bandwidth is over 700kHz. In addition to being easy to use, the AMP04 draws only 700µA of supply current. For high resolution data acquisition systems, laser trimming of low drift thin-film resistors limits the input offset voltage to under 150µV and allows the AMP04 to offer gain nonlinearity of 0.005%.

.

Single supply operation

.

Zero-in/zero-out

.

Single-resistor gain set

.

700µA Maximum low supply current
