超低失真,宽带电压反馈运算放大器 Ultralow Distortion, Wide Bandwidth Voltage Feedback Op Amps
GENERAL DESCRIPTION
The AD9631 and AD9632 are very high speed and wide band width amplifiers. They are an improved performance alternative to the AD9621 and AD9622. The AD9631 is unity gain stable. The AD9632 is stable at gains of 2 or greater. Using a voltage feedback architecture, the AD9631/AD9632’s exceptional settling time, bandwidth, and low distortion meet the requirements of many applications that previously depended on current feedback amplifiers. Its classical op amp structure works much more predictably in many designs.
FEATURES
Wide Bandwidth
AD9631, G = +1
AD9632, G = +2
Small Signal
320 MHz
250 MHz
Large Signal 4 V p-p
175 MHz
180 MHz
Ultralow Distortion SFDR, Low Noise
–113 dBc Typ @ 1 MHz
–95 dBc Typ @ 5 MHz
–72 dBc Typ @ 20 MHz
46 dBm Third Order Intercept @ 25 MHz
7.0 nV/÷Hz Spectral Noise Density
High Speed
Slew Rate 1300 V/s
Settling 16 ns to 0.01%, 2 V Step
3 V to 5 V Supply Operation
17 mA Supply Current
APPLICATIONS
ADC Input Driver
Differential Amplifiers
IF/RF Amplifiers
Pulse Amplifiers
Professional Video
DAC Current to Voltage
Baseband and Video Communications
Pin Diode Receivers
Active Filters/Integrators/Log Amps
供电电流 17 mA
电路数 1
通道数 1
共模抑制比 90.0 dB
输入电容 1.20 pF
转换速率 1.30 kV/μs
增益频宽积 130 MHz
输入阻抗 500 kΩ
输入补偿电压 3 mV
输入偏置电流 2 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 320 MHz
安装方式 Surface Mount

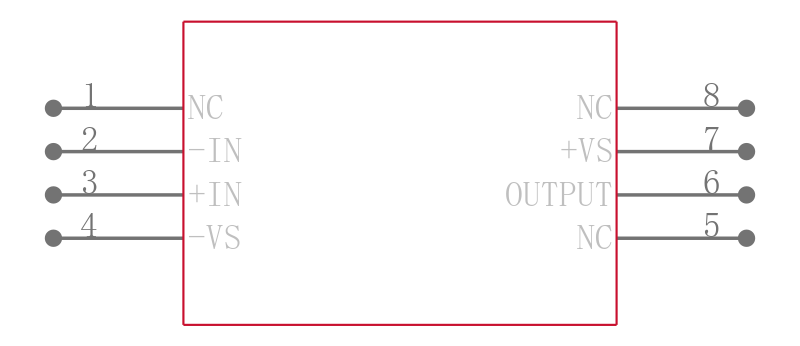

引脚数 8
封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 End of Life
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD9631AR-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
AD9631ARZ 亚德诺 | 类似代替 | AD9631AR-REEL和AD9631ARZ的区别 |
AD9631ARZ-REEL7 亚德诺 | 类似代替 | AD9631AR-REEL和AD9631ARZ-REEL7的区别 |
AD9631AR-REEL7 亚德诺 | 类似代替 | AD9631AR-REEL和AD9631AR-REEL7的区别 |
