ADA4930-1YCPZ-R2

对于低电压ADC的超低噪声驱动器 Ultralow Noise Drivers for Low Voltage ADCs

Product Details

The ADA4930-1/ADA4930-2 are very low noise, low distortion, high speed differential amplifiers. They are an ideal choice for driving 1.8 V high performance ADCs with resolutions up to 14 bits from dc to 70 MHz. The adjustable output common mode allows the ADA4930-1/ADA4930-2 to match the input of the ADC. The internal common-mode feedback loop provides exceptional output balance, suppression of even-order harmonic distortion products, and dc level translation.

With the ADA4930-1/ADA4930-2, differential gain configurations are easily realized with a simple external feedback network of four resistors determining the closed-loop gain of the amplifier.

The ADA4930-1/ADA4930-2 are fabricated using Analog Devices, Inc., proprietary silicon-germanium SiGe, complementary bipolar process, enabling them to achieve very low levels of distortion with an input voltage noise of only 1.2 nV/√Hz.

The low dc offset and excellent dynamic performance of the ADA4930-1/ADA4930-2 make them well suited for a wide variety of data acquisition and signal processing applications.

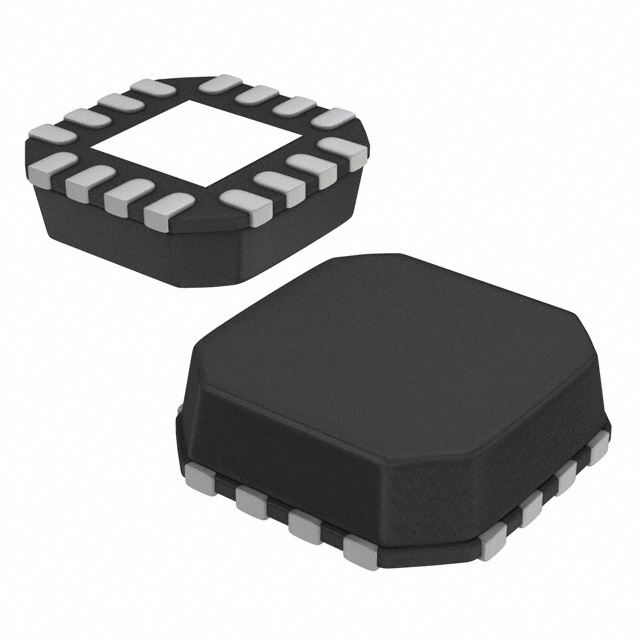

The ADA4930-1 is available in a Pb-free, 3 mm × 3 mm 16-lead LFCSP, and the ADA4930-2 is available in a Pb-free, 4 mm × 4 mm 24-lead LFCSP. The pinout has been optimized to facilitate printed circuit board PCB layout and minimize distortion. The ADA4930-1 is specified to operate over the −40°C to +105°C temperature range, and the ADA4930-2 is specified to operate over the −40°C to +105°C temperature range for 3.3 V or 5 V supply voltages.

**Applications**

.

ADC drivers

.

Single-ended-to-differential converters

.

IF and baseband gain blocks

.

Differential buffers

.

Line drivers

### Features and Benefits

.

Low input voltage noise: 1.2 nV/√Hz

.

Low common-mode output: 0.9 V on single supply

.

Extremely low harmonic distortion

.

−104 dBc HD2 at 10 MHz

.

−79 dBc HD2 at 70 MHz

.

−73 dBc HD2 at 100 MHz

.

−101 dBc HD3 at 10 MHz

.

−82 dBc HD3 at 70 MHz

.

−75 dBc HD3 at 100 MHz

.

See data sheet for additional features

**ADA4930-1-EP supports defense and aerospace applications AQEC standard**

.

Download ADA4930-1-EP data sheet pdf

.

Extended temperature range: −55°C to +105°C

.

Controlled manufacturing baseline

.

One assembly/test site

.

One fabrication site

.

Enhanced product change notification

.

Qualification data available on request

.

V62/13615 DSCC drawing number
