DC至600 MHz的双数字可变增益放大器 DC to 600 MHz, Dual-Digital Variable Gain Amplifiers
Product Details
The AD8366 is a matched pair of fully differential, low noise and low distortion, digitally programmable variable gain amplifiers VGAs. The gain of each amplifier can be programmed separately or simultaneously over a range of 4.5 dB to 20.25 dB in steps of 0.25 dB. The amplifier offers flat frequency performance from dc to 70 MHz, independent of gain code.
The AD8366 offers excellent spurious-free dynamic range, suitable for driving high resolution analog-to-digital converters ADCs. The NF at maximum gain is 11.4 dB at 10 MHz and increases ~2 dB for every 4 dB decrease in gain. Over the entire gain range, the HD3/HD2 are better than −90 dBc for 2 V p-p at the output at 10 MHz into 200 Ω. The two-tone intermodulation distortion of −90 dBc into 200 Ω translates to an OIP3 of 45 dBm 38 dBVrms. The differential input impedance of 200 Ω provides a well-defined termination. The differential output has a low impedance of ~25 Ω.
The output common-mode voltage defaults to VPOS/2 but can be programmed via the VCMA and VCMB pins over a range of voltages. The input common-mode voltage also defaults to VPOS/2 but can be driven down to 1.5 V. A built-in, dc offset compensation loop can be used to eliminate dc offsets from prior stages in the signal chain. This loop can also be disabled if dc-coupled operation is desired.

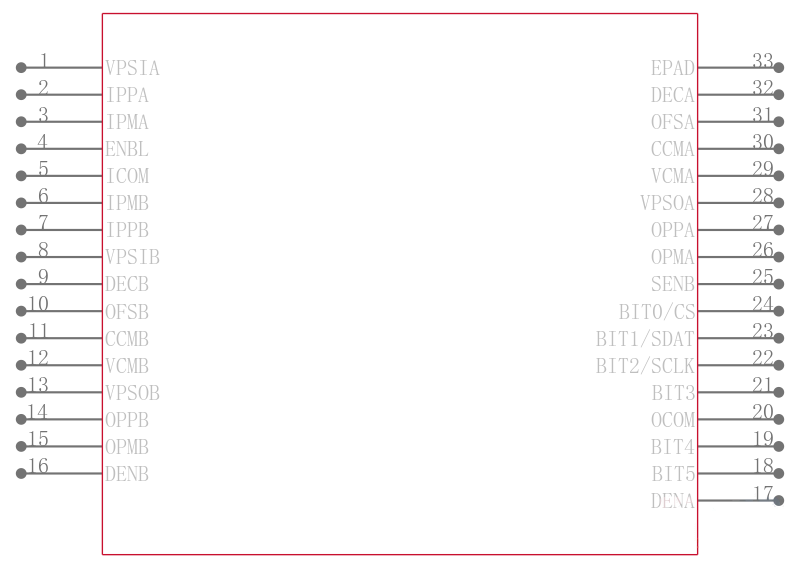

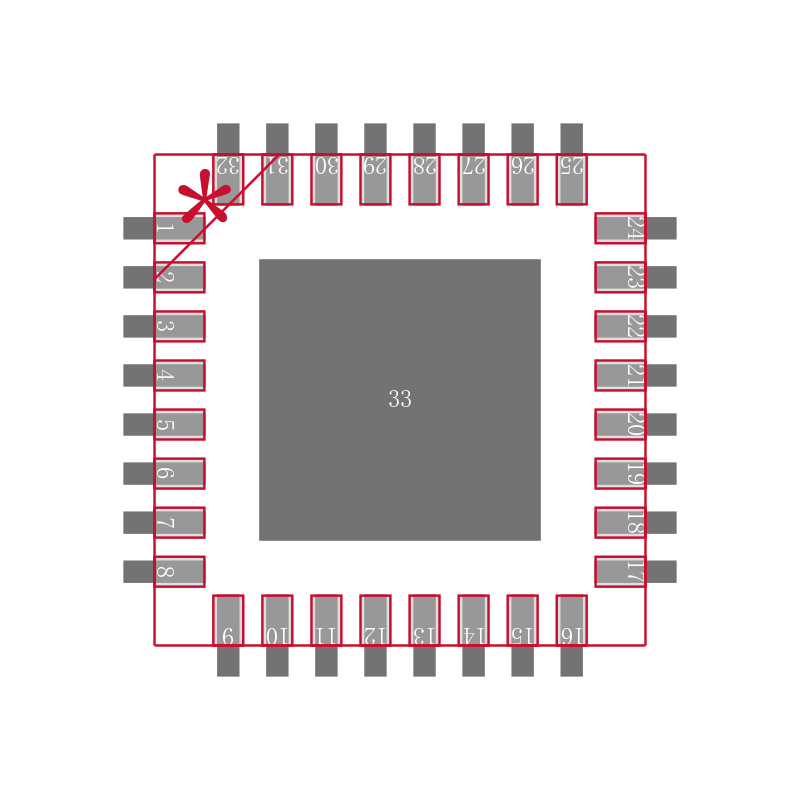

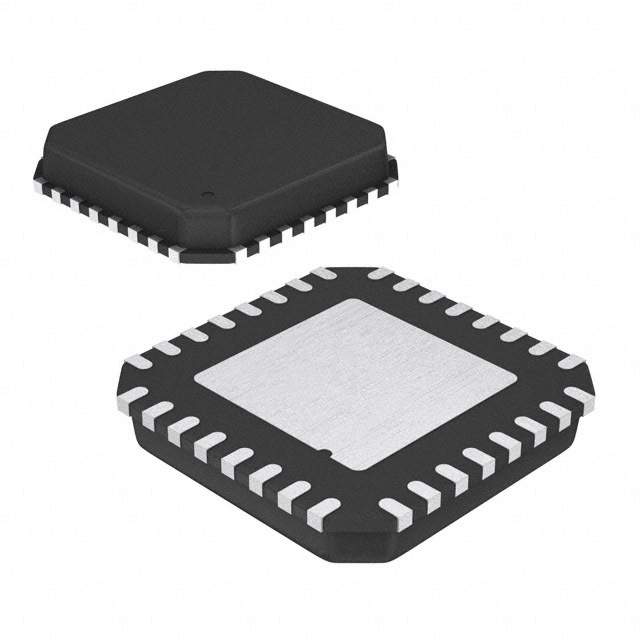

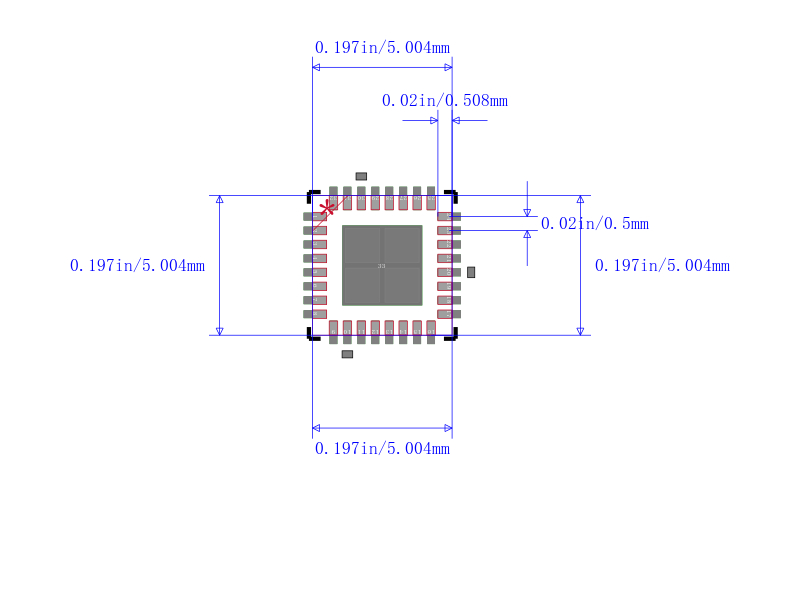

The digital interface allows for parallel or serial mode gain programming. The AD8366 operates from a 4.75 V to 5.25 V supply and consumes typically 180 mA. When disabled, the part consumes roughly 3 mA. The AD8366 is fabricated using Analog Devices, Inc., advanced silicon-germanium bipolar process, and it is available in a 32-lead exposed paddle LFCSP package. Performance is specified over the −40°C to +85°C temperature range.
**Applications**
* Baseband I/Q receivers
* Diversity receivers
* Wideband ADC drivers
### Features and Benefits
- .
- Matched pair of differential, digitally controlled VGAs
- .
- Gain range: 4.5 dB to 20.25 dB
- .
- 0.25 dB gain step size
- .
- Operating frequency
- .
- DC to 150 MHz 2 V p-p
- .
- 3 dB bandwidth: 600 MHz
- .
- Noise figure NF
- .
- 11.4 dB at 10 MHz at maximum gain
- .
- 18 dB at 10 MHz at minimum gain
- .
- OIP3: 45 dBm at 10 MHz
- .
- HD2/HD3
- .
- Better than −90 dBc for 2 V p-p output at 10 MHz at maximum gain
- .
- Differential input and output
- .
- Adjustable output common-mode
- .
- Optional dc output offset correction
- .
- Serial/parallel mode gain control
- .
- Power-down feature
- .
- Single 5 V supply operation
