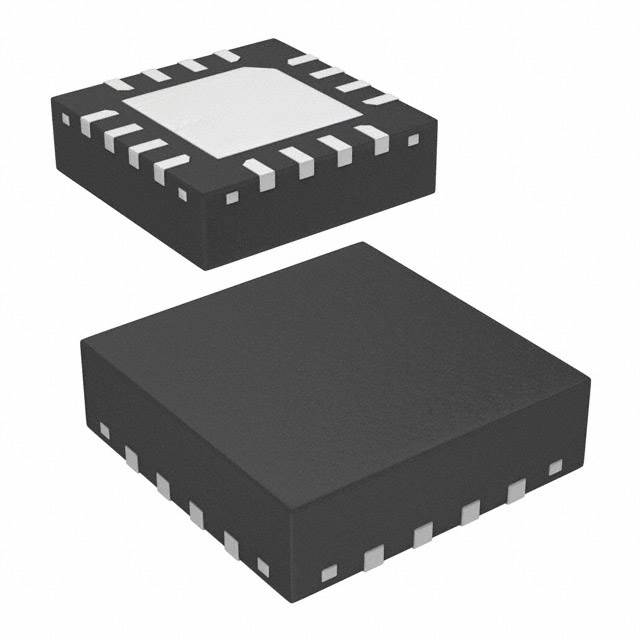

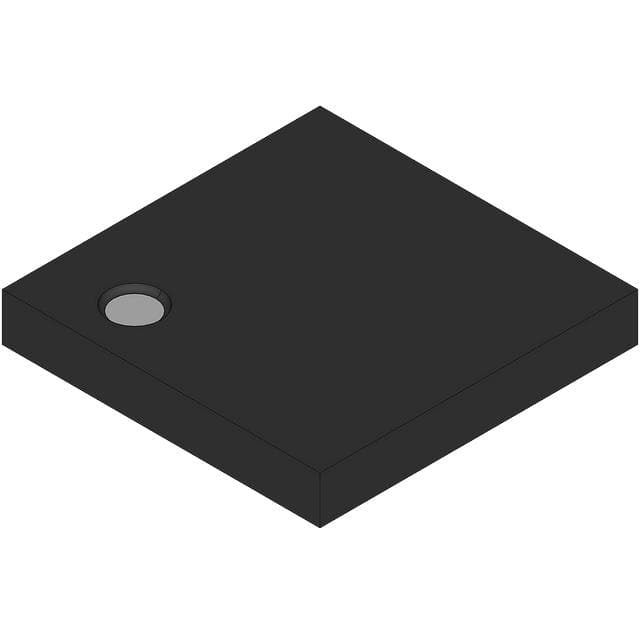

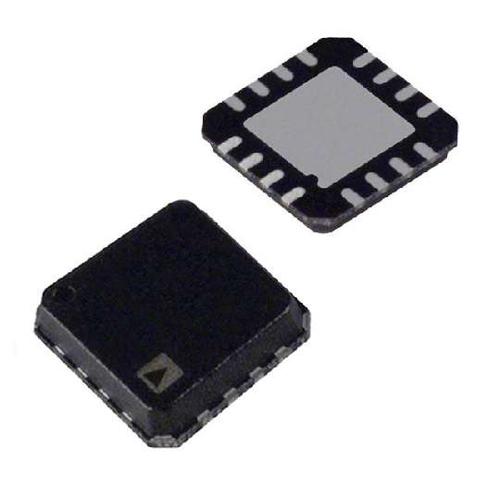

ADA4004-4ACPZ-R2

ANALOG DEVICES  ADA4004-4ACPZ-R2  运算放大器, 四路, 12 MHz, 4个放大器, 2.7 V/µs, ± 5V 至 ± 15V, LFCSP, 16 引脚

The is a precision quad Operational Amplifier features 40µV offset, 0.7µV/°C drift, 12MHz bandwidth and low 1.7mA per amplifier supply current. The ADA4004-2 is designed on the high-performance iPolar™ process, enabling improvements such as reduced noise and power consumption, increased speed and stability, smaller footprint size. Novel design techniques enable the ADA4004-2 to achieve 1.8nV/√Hz voltage noise density and a low 6Hz 1/f noise corner frequency while consuming just 1.7mA per amplifier. Applications for this amplifier include high precision controls, PLL filters, high-performance precision filters and analytical instrumentation, precision power supply controls, ATE and data acquisition systems.

.

1.8nV/√Hz Very low voltage noise

.

90nA Maximum low input bias current

.

125µV Maximum offset voltage

.

120dB High gain
