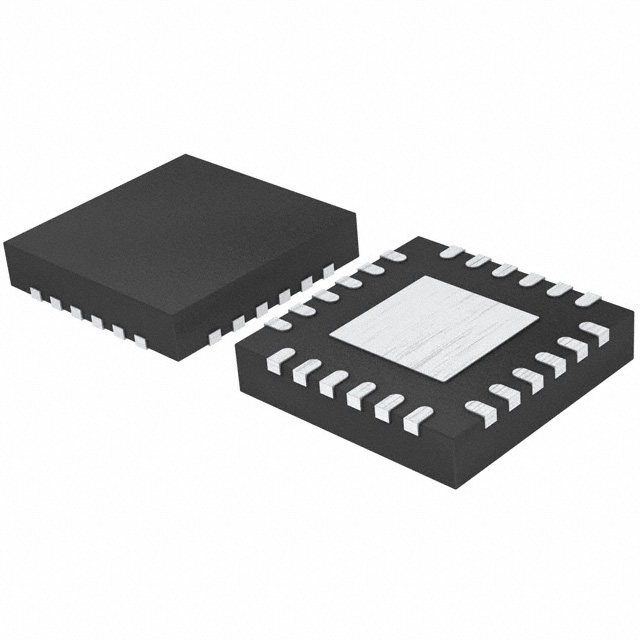

ANALOG DEVICES ADL5566ACPZ-R7 差分放大器, 双路, 2 放大器, 16 dB, 4.5 GHz, -40 °C, 85 °C
ADC 驱动器 IC 驱动器 24-LFCSP-WQ（4x4）
立创商城:
ADL5566ACPZ-R7
得捷:
IC OPAMP RF/IF DIFF 2CIR 24LFCSP
e络盟:
DIFFERENTIAL AMPLIFIER, 4.5GHZ, 18V/NS, LFCSP-24
艾睿:
Use this differential amplifier ADL5566ACPZ-R7 differential amplifier from Analog Devices to compare signals. Its maximum power dissipation is 900 mW. This part has a minimum operating temperature of -40 °C and a maximum of 105 °C. It has 2 channels per chip. This device uses a single power supply.
安富利:
IF Differential Amplifier 24-Pin LFCSP EP T/R
Verical:
SP Amp DIFF AMP Dual 5.2V 24-Pin LFCSP EP T/R
Newark:
# ANALOG DEVICES ADL5566ACPZ-R7 Differential Amplifier, Dual, 2 Amplifiers, 16 dB, 4.5 GHz, -40 °C, 85 °C
Win Source:
IC OPAMP RF/IF DIFF 24LFCSP
供电电流 160 mA
电路数 1
通道数 2
针脚数 24
耗散功率 0.9 W
共模抑制比 44 dB
带宽 4.5 GHz
增益 16 dB
输入偏置电流 5 µA
测试频率 200 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 4.5 GHz
耗散功率Max 900 mW
共模抑制比Min <60 dB
电源电压 2.8V ~ 5.2V
电源电压Max 5V ~ 7V
电源电压Min 2.8 V
安装方式 Surface Mount
引脚数 24
封装 LFCSP-24
高度 0.73 mm
封装 LFCSP-24
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, Industrial, 射频通信, Missiles and Precision Munitions, Aerospace and Defense, 驱动器, Radar, Electronic Surveillance and Countermeasures, RF Communications
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
