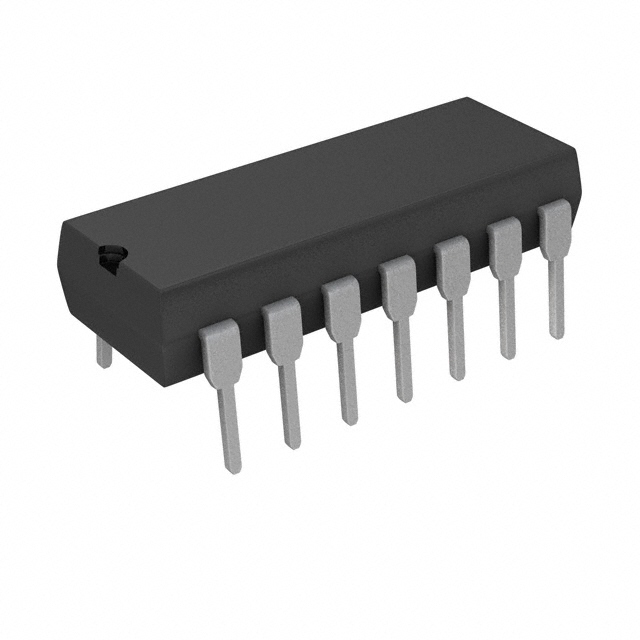

AD713KN

四路精密，低成本，高速， BiFET运算放大器 Quad Precision, Low Cost, High Speed, BiFET Op Amp

* AC performance * 1 μs settling to 0.01% for 10 V step * 20 V/μs slew rate * 0.0003% total harmonic distortion THD * 4 MHz unity gain bandwidth * DC performance * 1.5 mV maximum offset voltage * 8 μV/°C typical drift * 150 V/mV minimum open-loop gain * 2 μV p-p typical noise, 0.1 Hz to 10 Hz * True 14-bit accuracy * Single version: AD711, dual version: AD712 * Available in 16-lead SOIC, 14-lead PDIP and CERDIP

立创商城:
AD713KN

艾睿:
OP Amp Quad GP

安富利:
OP Amp Quad GP ±18V 14-Pin PDIP N

罗切斯特:
Operational Amplifier, 4 Func, 700uV Offset-Max, BIPolar, PDIP14
