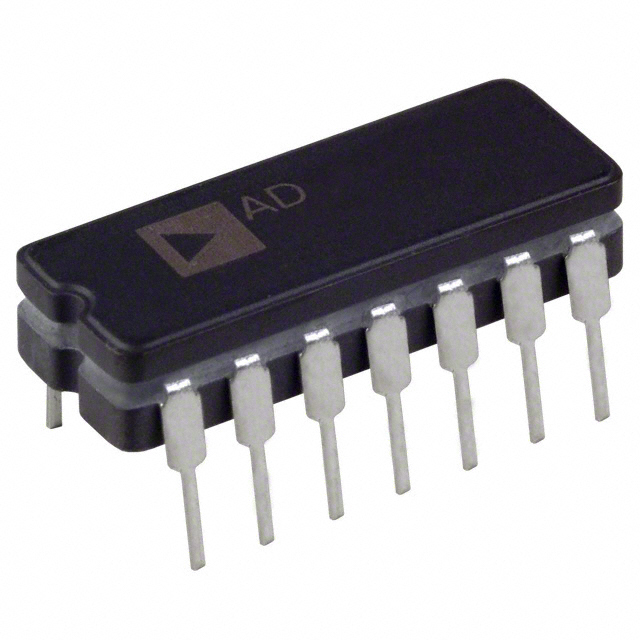

AD842SQ图片6
AD842SQ图片7
AD842SQ图片8

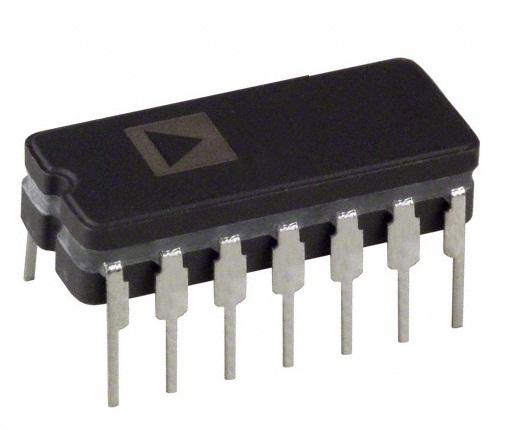

AD842SQ图片9
AD842SQ概述

宽带,高输出电流,快速建立运算放大器 Wideband, High Output Current, Fast Settling Op Amp

Product Details

The AD842 is a member of the Analog Devices, Inc. family of wide bandwidth operational amplifiers. This device is fabricated using the Analog Device junction isolated complementary bipolar CB process. This process permits a combination of dc precision and wideband ac performance previously unobtainable in a monolithic op amp. In addition to its 80 MHz gain bandwidth product, the AD842 offers extremely fast settling characteristics, typically settling to within 0.01% of final value in less than 100 ns for a 10 V step.

The AD842 also offers a low quiescent current of 13 mA, a high output current drive capability 100 mA minimum, a low input voltage noise of 9 nV√Hz, and a low input offset voltage 1.5 mV maximum.

The 375 V/μs slew rate of the AD842, along with its 80 MHz gain bandwidth product, ensures excellent performance in video and pulse amplifier applications. This amplifier is ideally suited for use in high frequency signal conditioning circuits and wide bandwidth active filters. The extremely rapid settling time of the AD842 makes this amplifier the preferred choice for data acquisition applications requiring 12-bit accuracy. The AD842 is also appropriate for other applications, such as high speed DAC and ADC buffer amplifiers and other wide bandwidth circuitry.

### Features and Benefits

.
Gain Bandwidth Product: 80 MHz Gain = 2
.
Fast Settling: 100 ns to 0.01% for a 10 V Step
.
Slew Rate: 375 V/µs
.
Stable at Gains of 2 or Greater
.
Full Power Bandwidth: 6.0 MHz for 20 V p-p
.
Input Offset Voltage: 1.5 mV max
.
Input Offset Drift: 14 µV/°C
.
Input Voltage Noise: 9 nV/√Hz typ
.
Open-Loop Gain: 90 V/mV into a 499 Ω Load
.
Output Current: 100 mA min
.
Quiescent Supply Current: 14 mA max
AD842SQ中文资料参数规格
技术参数

供电电流 13 mA

电路数 1

通道数 1

耗散功率 1.1 W

共模抑制比 86 dB

输入电容 2.00 pF

带宽 80 MHz

转换速率 375 µV/μs

增益频宽积 80 MHz

输入阻抗 100 kΩ

输入补偿电压 500 µV

输入偏置电流 4.2 µA

工作温度Max 125 ℃

工作温度Min -55 ℃

增益带宽 80 MHz

耗散功率Max 1100 mW

共模抑制比Min 85dB ~ 90dB

电源电压Max 36V ~ 37V

封装参数

安装方式 Through Hole

引脚数 14

封装 CDIP-14

外形尺寸

长度 19.94 mm

宽度 7.87 mm

高度 3.56 mm

封装 CDIP-14

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

军工级 Yes

REACH SVHC版本 2015/12/17

数据手册

AD842SQ引脚图与封装图
AD842SQ引脚图
AD842SQ封装图
AD842SQ电路图
AD842SQ封装焊盘图
