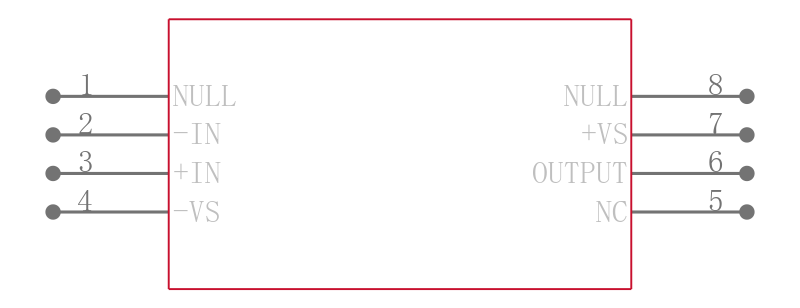

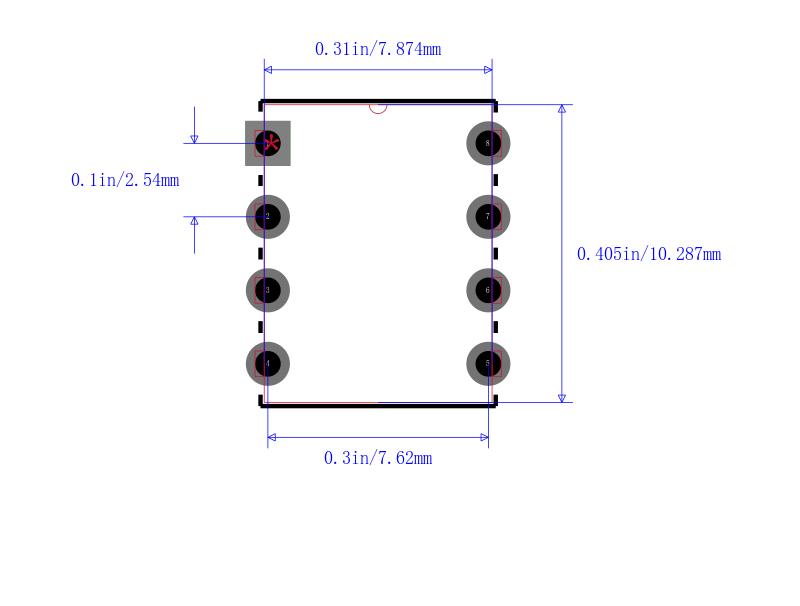

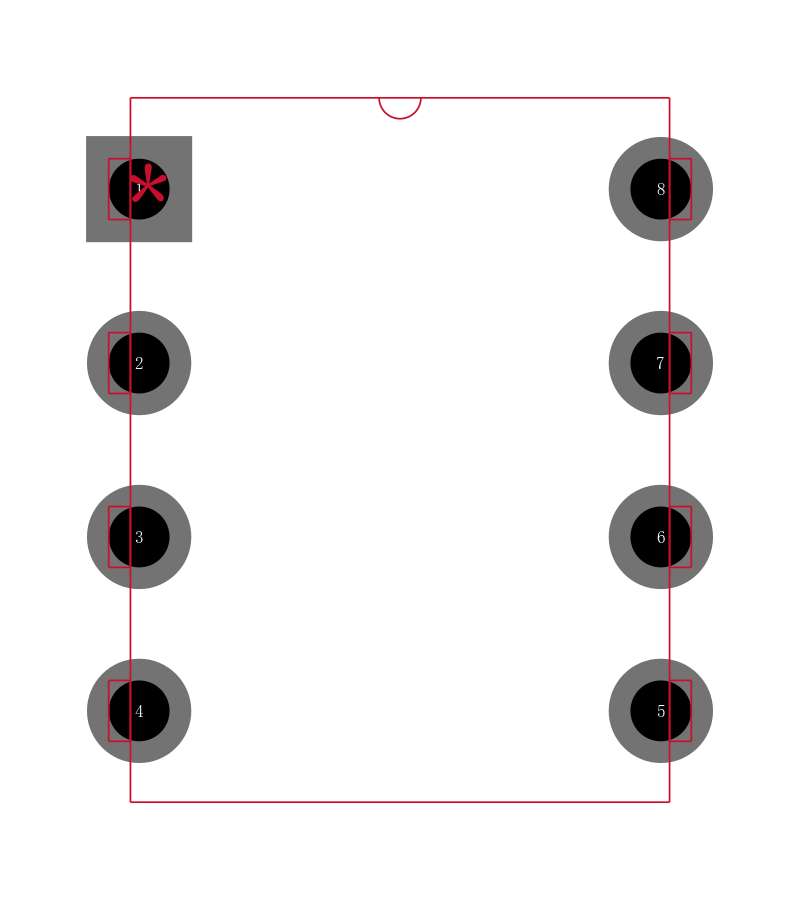

AD848SQ/883B

高速，低功耗单片运算放大器 High Speed, Low Power Monolithic Op Amp

PRODUCT DESCRIPTION

The AD848 and AD849 are high speed, low power monolithic operational amplifiers. The AD848 is internally compensated so that it is stable for closed loop gains of 5 or greater. The AD849 is fully decompensated and is stable at gains greater than 24. The AD848 and AD849 achieve their combination of fast ac and good dc performance by utilizing Analog Devices’ junction isolated complementary bipolar CB process. This process enables these op amps to achieve their high speed while only requiring 4.8 mA of current from the power supplies.

FEATURES

  725 MHz Gain Bandwidth – AD849

  175 MHz Gain Bandwidth – AD848

  4.8 mA Supply Current

  300 V/ms Slew Rate

  80 ns Settling Time to 0.1% for a 10 V Step – AD849

  Differential Gain: AD848 = 0.07%, AD849 = 0.08%

  Differential Phase: AD848 = 0.088, AD849 = 0.048

  Drives Capacitive Loads

DC PERFORMANCE

  3 nV/√Hz Input Voltage Noise – AD849

  85 V/mV Open Loop Gain into a 1 kV Load – AD849

  1 mV max Input Offset Voltage

  Performance Specified for 65 V and 615 V Operation

  Available in Plastic, Hermetic Cerdip and Small Outline Packages.

     Chips and MIL-STD-883B Parts Available.

  Available in Tape and Reel in Accordance with EIA-481A Standard

APPLICATIONS

  Cable Drivers

  8- and 10-Bit Data Acquisition Systems

  Video and RF Amplification

  Signal Generators
