AOCJY1-26.000MHZ-F-SW

At-Cut Ocxo 26MHz, 3.3V, Sine Wave, 305mA Ocxo -40℃ To +75℃ ± 500 Ppb

FEATURES:

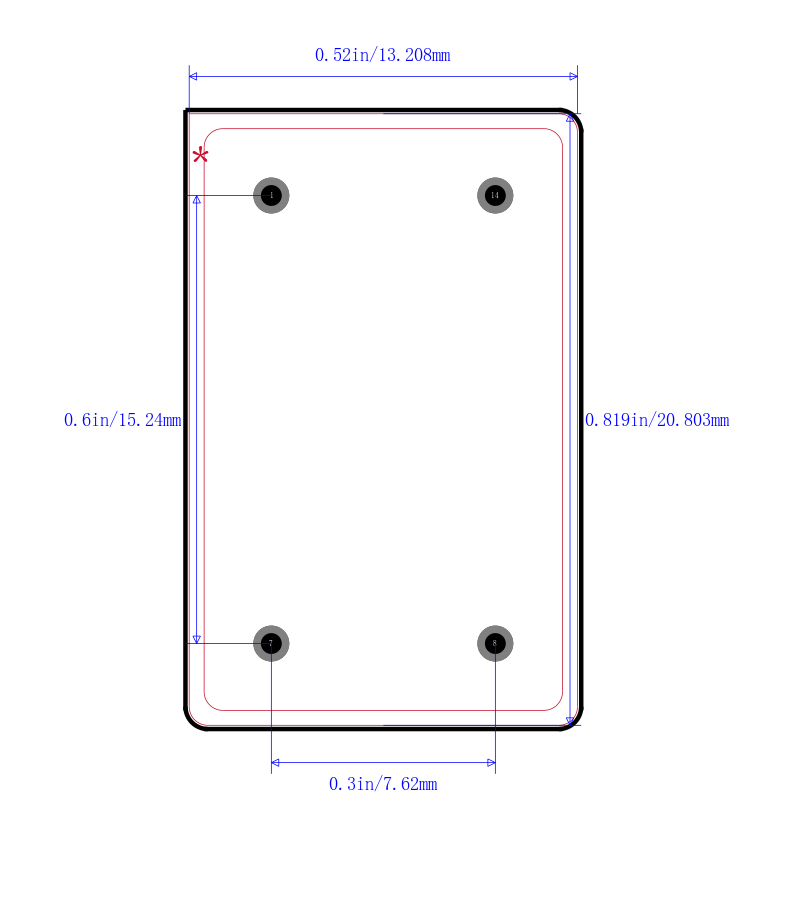

• 20.8 x 13.2 x 8.2 mm Leaded- RoHS Compliant Reflow-able Package

• AT-Cut, High “Q” resonator based design

• Either Sinewave or CMOS RF output

• Available with ±500 ppb over -40°C to +75°C operating temperature Range

• Tighter Stabilities to ±50.0 ppb over 0°C to +50°C also available

• Exceptional long-term Aging of ±3 ppm max. over 10-Year Product Life

• Excellent close-in phase noise -145 dBc/Hz Typical @1k Hz offset; 10MHz carrier

APPLICATIONS:

• Cellular Infrastructure

• Radar Systems

• Test & Measurement Equipment

• GPS Tracking with precision hold-over accuracy

• WiMax / WLAN
