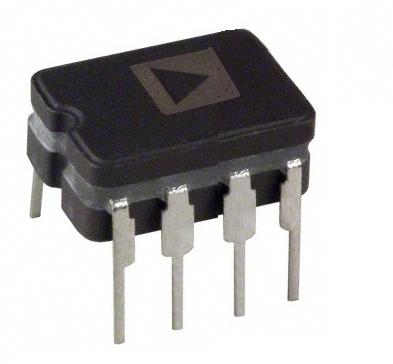

AD827SQ/883B

高速，低功耗双运算放大器 High Speed, Low Power Dual Op Amp

PRODUCT DESCRIPTION

The AD827 is a dual version of Analog Devices’ industry standard AD847 op amp. Like the AD847, it provides high speed, low power performance at low cost. The AD827 achieves a 300 V/µs slew rate and 50 MHz unity-gain bandwidth while consuming only 100 mW when operating from ±5 volt power supplies. Performance is specified for operation using ±5 V to ±15 V power supplies.

FEATURES

High Speed

  50 MHz Unity Gain Stable Operation

  300 V/ms Slew Rate

  120 ns Settling Time

  Drives Unlimited Capacitive Loads

Excellent Video Performance

  0.04% Differential Gain @ 4.4 MHz

  0.198 Differential Phase @ 4.4 MHz

Good DC Performance

  2 mV max Input Offset Voltage

  15 mV/8C Input Offset Voltage Drift

  Available in Tape and Reel in Accordance with EIA-481A Standard

Low Power

Only 10 mA Total Supply Current for Both Amplifiers

5 V to 15 V Supplies
