精密,双通道, JFET输入,轨到轨仪表放大器 Precision, Dual-Channel, JFET Input Rail-to-Rail Instrumentation Amplifier

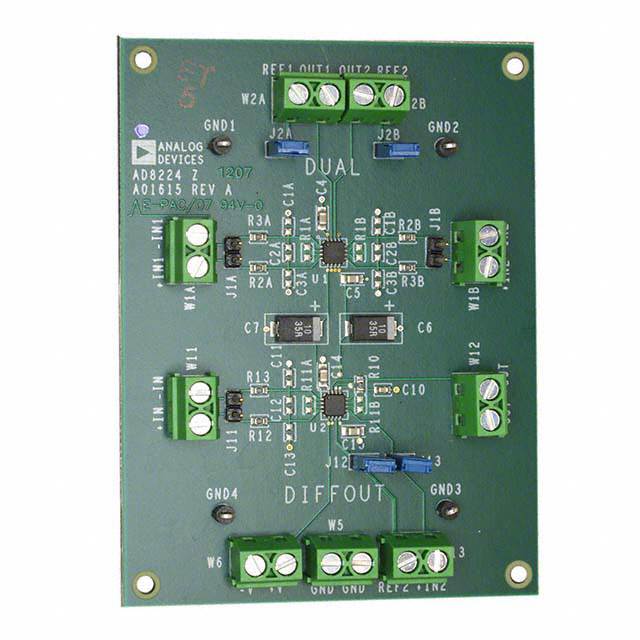

The is an evaluation board to evaluate the performance of AD8224 single supply, JFET input instrumentation amplifier. It has two AD8224 instrumentation amplifier circuits, one circuit is configured for dual channel operation, and the other is configured for single channel, differential output operation. The inputs, outputs, references, and supplies are routed to screw terminals for easy connectivity. The PCB board has four layers. The top and bottom layers are used for routing, and the two internal layers are ground planes. The ground plane was removed underneath the RG resistors. This is a precaution against any capacitance mismatch at the RGx pins that may affect ac CMRR.
ESD sensitive device, take proper precaution while handling the device.
供电电流 750 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 1.5 MHz
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Signal Processing, Automation & Process Control, 医用, 自动化与过程控制, Sensing & Instrumentation, Wireless, 系统监控, 无线, 传感与仪器, System Monitoring, Medical, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
