IC OPAMP INSTR 15MHz 8SOIC
Product Details
The AD8229 is an ultralow noise instrumentation amplifier designed for measuring small signals in the presence of large common-mode voltages and high temperatures.
The AD8229 has been designed for high temperature operation. The process is dielectrically isolated to avoid leakage currents at high temperatures. The design architecture was chosen to compensate for the low V
BE voltages at high temperatures.
The AD8229 excels at measuring tiny signals. It delivers industry leading 1 nV/√Hz input noise performance. The high CMRR of the AD8229 prevents unwanted signals from corrupting the acquisition. The CMRR increases as the gain increases, offering high rejection when it is most needed.
The AD8229 is one of the fastest instrumentation amplifiers available. Its current feedback architecture provides high bandwidth at high gain, for example, 1.2 MHz at G = 100. The design includes circuitry to improve settling time after large input voltage transients. The AD8229 was designed for excellent distortion performance, allowing use in demanding applications such as vibration analysis.
Gain is set from 1 to 1000 with a single resistor. A reference pin allows the user to offset the output voltage. This feature can be useful when interfacing with analog-to-digital converters.
For the most demanding applications, the AD8229 is available in an 8-lead side-brazed ceramic dual in-line package SBDIP. For space-constrained applications, the AD8229 is available in an 8-lead plastic standard small outline package SOIC.
The AD8229 is also available as Known Good Die
**Applications**
### Features and Benefits
1 nV/√Hz input noise
45 nV/√Hz output noise
126 dB min at G = 100
80 dB min to 5 kHz, G = 1
供电电流 6.7 mA
电路数 1
通道数 1
共模抑制比 80 dB
输入补偿电压 100 µV
输入偏置电流 70 nA
工作温度Max 175 ℃
工作温度Min -40 ℃
3dB带宽 15 MHz
共模抑制比Min 80 dB
电源电压Max 30V ~ 50V
安装方式 Surface Mount
引脚数 8

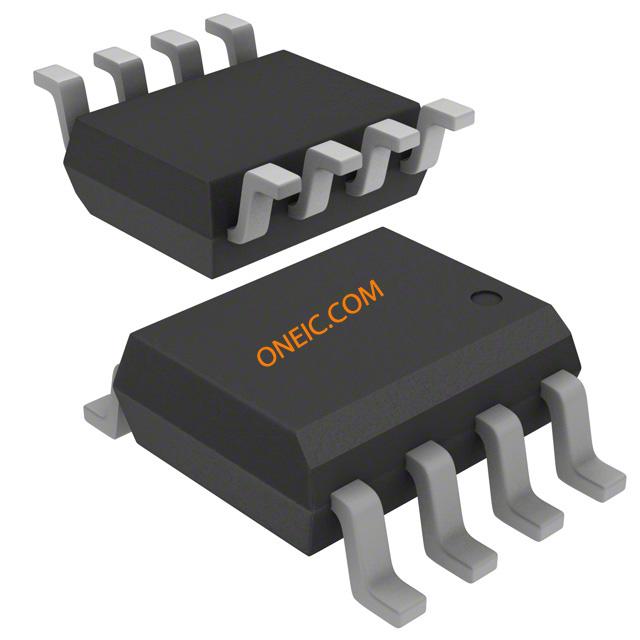

封装 SOIC-8
长度 13.21 mm
宽度 7.37 mm
高度 2.41 mm
封装 SOIC-8
工作温度 -40℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Aerospace and Defense, Unmanned Systems, Instrumentation and Measurement, Avionics, High Temperature
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8229HRZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD8229HRZ 亚德诺 | 类似代替 | AD8229HRZ-R7和AD8229HRZ的区别 |
