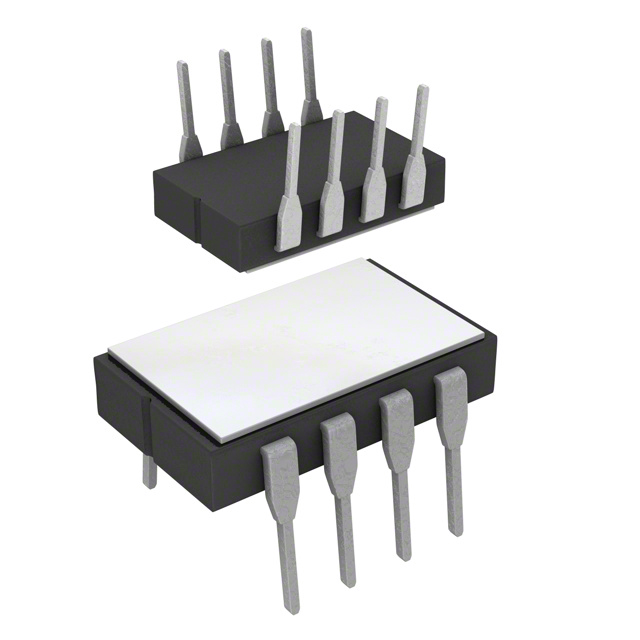

AD8229HDZ

Analog Devices### 仪器放大器，Analog DevicesAnalog Devices 的一系列仪表放大器。 此系列的产品还包括多种评估和开发板。

，Analog Devices

仪表放大器 IC 可以放大两个输入信号电压之间的差异，同时抑制两个输入共用的信号。可以在嘈杂环境和存在大共模信号（交流电源线频率）的应用中保持直流精密度和增益精确度。

### 仪器放大器，Analog Devices

Analog Devices 的一系列仪表放大器。 此系列产品还包括多种评估和开发板。

得捷:
IC INST AMP 1 CIRCUIT 8DIP

立创商城:
AD8229HDZ

欧时:
仪表放大器，Analog Devices仪表放大器 IC 可以放大两个输入信号电压之间的差异，同时抑制两个输入共用的信号。可以在嘈杂环境和存在大共模信号（交流电源线频率）的应用中保持直流精密度和增益精确度。### 仪器放大器，Analog DevicesAnalog Devices 的一系列仪表放大器。 此系列产品还包括多种评估和开发板。

贸泽:
Instrumentation Amplifiers 1 nV/Hz Low Noise 210oC

艾睿:
INST Amp Single ±17V 8-Pin SBCDIP Tube

安富利:
The AD8229 is an ultralow noise instrumentation amplifier designed for measuring small signals in the presence of large common-mode voltages and high temperatures.The AD8229 has been designed for high temperature operation. The process is dielectrically isolated to avoid leakage currents at high temperatures. The design architecture was chosen to compensate for the low VBE voltages at high temperatures.The AD8229 excels at measuring tiny signals. It delivers industry leading 1 nV/√Hz input noise performance. The high CMRR of the AD8229 prevents unwanted signals from corrupting the acquisition. The CMRR increases as the gain increases, offering high rejection when it is most needed.The AD8229 is one of the fastest instrumentation amplifiers available. Its current feedback architecture provides high bandwidth at high gain, for example, 1.2 MHz at G = 100. The design includes circuitry to improve settling time after large input voltage transients. The AD8229 was designed for excellent distortion performance, allowing use in demanding applications such as vibration analysis.Gain is set from 1 to 1000 with a single resistor. A reference pin allows the user to offset the output voltage. This feature can be useful when interfacing with analog-to-digital converters.For the most demanding applications, the AD8229 is available in an 8-lead side-brazed ceramic dual in-line package SBDIP. For space-constrained applications, the AD8229 is available in an 8-lead plastic standard small outline package SOIC.

Chip1Stop:
SP Amp INSTR Amp Single ±17V 8-Pin CSBDIP Tube

Verical:
SP Amp INSTR Amp Single ±17V 8-Pin CSBDIP Tube

Newark:
# ANALOG DEVICES  AD8229HDZ  Instrument Amplifier, 1 Amplifier, 100 µV, 22 V/µs, 15 MHz, ± 4V to ± 17V, DIP

DeviceMart:
IC AMP INSTR LOW NOISE 8-DIP
