ADD8704ACPZ-REEL7

16 V四路运算放大器 16 V Quad Operational Amplifier

GENERAL DESCRIPTION

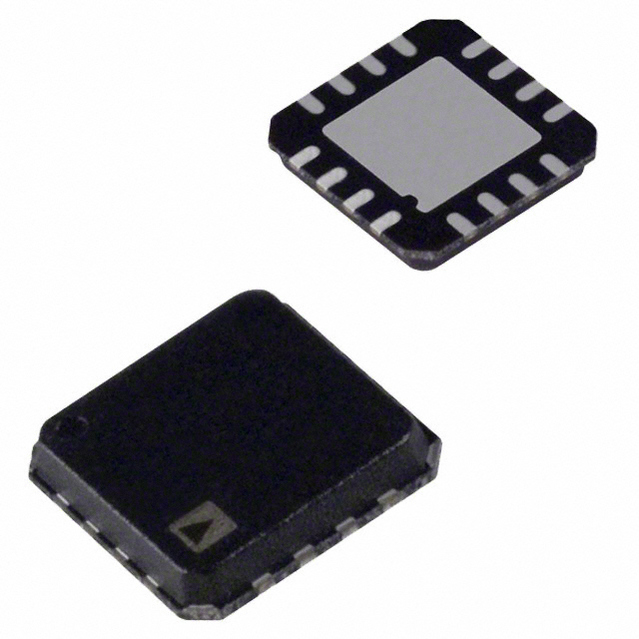

The ADD8704 is a single-supply quad operational amplifier that has been optimized for today’s low cost TFT LCD notebook and monitor panels. Output channels A and D swing to the rail for use as end-point gamma references. Output channels B and C provide high continuous and peak current drive for use as VCOM or repair amplifiers; they can also be used as midpoint gamma references. All four amplifiers have excellent transient response and have high slew rate and capacitive load drive capability. The ADD8704 is specified over the –40°C to +85°C temperature range and is available in either a 14-lead TSSOP or a 16-lead LFCSP package for thin, portable applications.

FEATURES

  Single-supply operation: 4.5 V to 16.5 V

  Upper/lower buffers swing to VDD/GND

  Continuous output current: 35 mA

  VCOM peak output current: 250 mA

  Offset voltage: 15 mV

  Slew rate: 6 V/µs

  Unity gain stable with large capacitive loads

  Supply current: 700 µA per amplifier

  Drop-in replacement for EL5420

APPLICATIONS

  TFT LCD monitor panels

  TFT LCD notebook panels

  Communications equipment

  Portable instrumentation

  Electronic games
