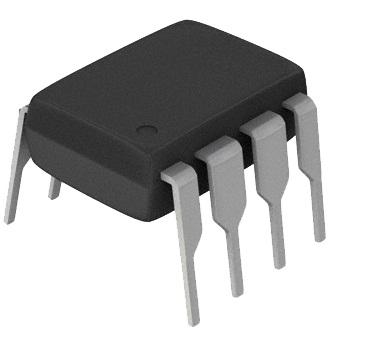

AD708JN

Ultralow Offset Vtg Dual

GENERAL DESCRIPTION

The AD708 is a high precision, dual monolithic operational amplifier. Each amplifier individually offers excellent dc precision with maximum offset voltage and offset voltage drift of any dual bipolar op amp.

The matching specifications are among the best available in any dual op amp. In addition, the AD708 provides 5 V/μV minimum open-loop gain and guaranteed maximum input voltage

noise of 350 nV p-p 0.1 Hz to 10 Hz. All dc specifications show excellent stability over temperature, with offset voltage drift typically 0.1 μV/°C and input bias current drift of

25 pA/°C maximum.

FEATURES

Very high dc precision

  30 μV maximum offset voltage

  0.3 μV/°C maximum offset voltage drift

  0.35 μV p-p maximum voltage noise 0.1 Hz to 10 Hz

  5 million V/V minimum open-loop gain

  130 dB minimum CMRR

  120 dB minimum PSRR

Matching characteristics

  30 μV maximum offset voltage match

  0.3 μV/°C maximum offset voltage drift match

  130 dB minimum CMRR match

Available in 8-lead narrow body, PDIP, and hermetic CERDIP and CERDIP/883B packages
