AD8057ART-REEL

低成本，高性能电压反馈型， 325 MHz的放大器 Low Cost, High Performance Voltage Feedback, 325 MHz Amplifiers

GENERAL DESCRIPTION

The AD8057 single and AD8058 dual are very high performance amplifiers with a very low cost. The balance between cost and performance make them ideal for many applications. The AD8057 and AD8058 will reduce the need to qualify a variety of specialty amplifiers.

The AD8057 and AD8058 are voltage feedback amplifiers with the bandwidth and slew rate normally found in current feedback amplifiers. The AD8057 and AD8058 are low power amplifiers having low quiescent current and a wide supply range from 3 V to 12 V. They have noise and distortion performance required for high end video systems as well as dc performance parameters rarely found in high speed amplifiers.

FEATURES

  Low Cost Single AD8057 and Dual AD8058

  High Speed

     325 MHz –3 dB Bandwidth G = +1

     1000 V/μs Slew Rate

     Gain Flatness 0.1 dB to 28 MHz

  Low Noise

     7 nV/√Hz

  Low Power

     5.4 mA/Amplifier Typical Supply Current @ 5 V

  Low Distortion

     –85 dBc @ 5 MHz, RL = 1 kΩ

  Wide Supply Range from 3 V to 12 V

  Small Packaging

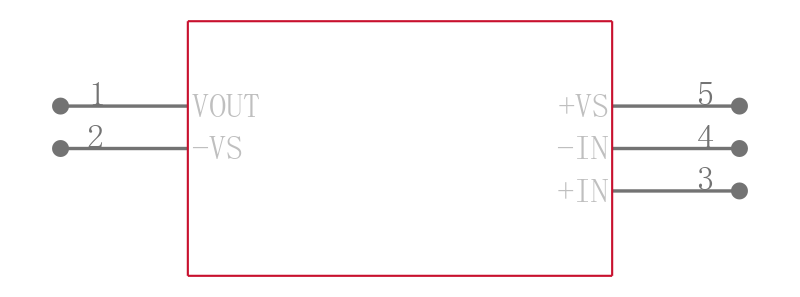

     AD8057 Available in SOIC-8 and SOT-23-5

     AD8058 Available in SOIC-8 and MSOP

APPLICATIONS

  Imaging

  DVD/CD

  Photodiode Preamp

  A-to-D Driver

  Professional Cameras

  Filters
