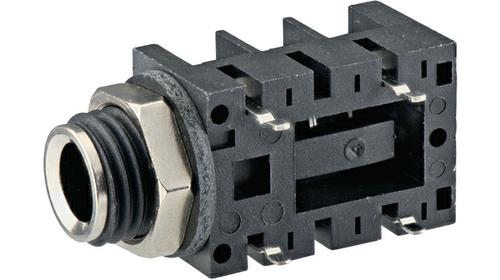

AMPHENOL ACJM-MHDR 手机音频连接器, 2 触点, 插座, 6.35 mm, 电路板安装, 镀锡触芯, 塑料主体
The is a 2-pole horizontal snap-fit PCB 1/4-inch 6.35mm mono Phone Jack with plastic housing, a metal nut and an entry bore. The M series mono phono jack has black UL94V-0 PBT modified PPO resin connector shell and Santoprene cable bushing. The standard heavy-duty contacts provide excellent signal performance and the rugged designs excel in professional audio applications.
触点数 2
极性 Female
触点电镀 Tin
绝缘电阻 2000 MΩ
方向 Right Angle
易燃性等级 UL 94 V-0
额定电流Max 10 A
工作温度Max 75 ℃
工作温度Min -25 ℃
安装方式 Snap-In, Solder Lug
封装 -
高度 16 mm
封装 -
颜色 Black
触点材质 Brass
工作温度 -25℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
制造应用 Audio, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
