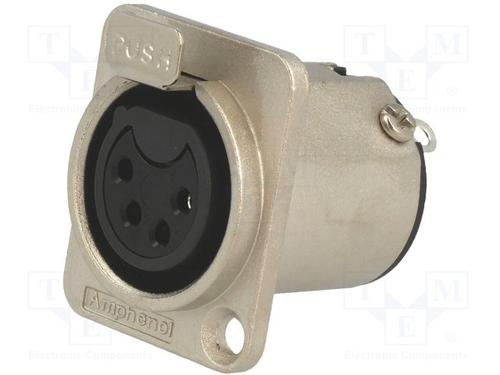

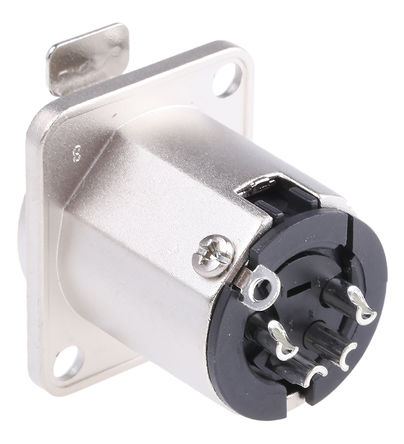

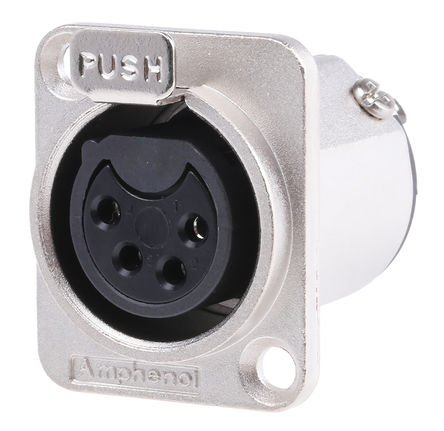

AC4FDZ

AMPHENOL  AC4FDZ  音频连接器, XLR, 插座, 4 触点, 面板安装, 金属主体, 镀银触芯, AC系列

交流 Z 系列 D 型底盘

D 型外壳可使用相同的面板切口安装在正面或背面

焊槽连接

•前导先匹配后断开插座触点

正向闩锁系统

垂直印刷电路板安装（不提供于 4 触点的母连接器）

欧时:
4路 直向 插座 面板安装 XLR 连接器, 镀银触点

e络盟:
XLR连接器, 4 触点, 插座, 面板安装, 镀银触芯, 金属主体, AC系列

艾睿:
Make a secure connection for your applications&s; sound with the xlr connector AC4FDZ audio and video connector from Amphenol. This F connector&s;s 4 contacts that are made out of brass and plated with silver. It has a straight body orientation. This connector has a single port. It has a maximum voltage rating of 133 VAC. It has a female type gender. This device has a maximum current rating of 10 A. AC4FDZ is housed in polybutylene terephthalate|polyphenylene ether. This part has a minimum operating temperature of -25 °C and a maximum of 75 °C. This product is 31 mm tall. Its 4 terminals use the solder termination method.

安富利:
Conn XLR Connector F 4 POS Solder ST Panel Mount 4 Terminal 1 Port Bag

Chip1Stop:
Conn XLR Connector F 4 POS Solder ST Panel Mount 4 Terminal 1 Port Bag

TME:
Socket; XLR; female; PIN:4; straight; with push button; soldering

Verical:
Conn XLR Connector F 4 POS Solder ST Panel Mount 4 Terminal 1 Port Bag

Newark:
# AMPHENOL  AC4FDZ  XLR Audio Connector, Socket, 4, Panel Mount, Metal Body, Silver Plated Contacts

MASTER:
Conn XLR Connector F 4 POS Solder ST Panel Mount 4 Terminal 1 Port Bag

Online Components:
Conn XLR Connector F 4 POS Solder ST Panel Mount 4 Terminal 1 Port Bag

Electro Sonic:
Conn XLR Connector F 4 POS Solder ST Panel Mount 4 Terminal 1 Port Bag
