A15324-01

LAIRD TECHNOLOGIES  A15324-01  热缝隙填充, 229 X 229MM, 1MM

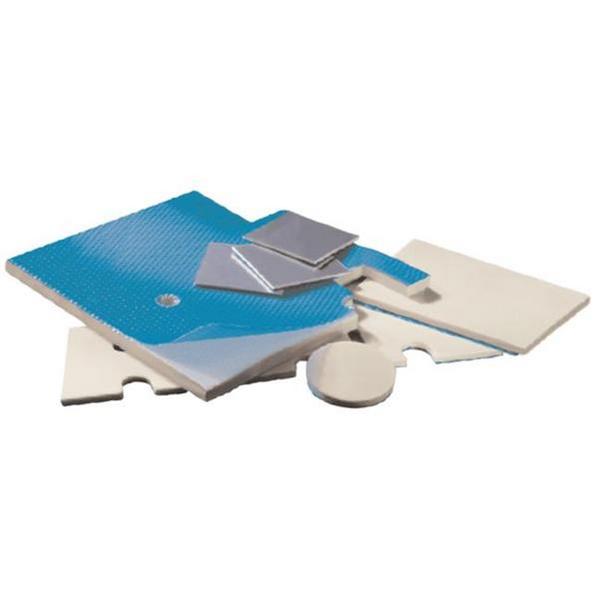

The is a 1mm Thermal Gap Filler with unique silicone gel offers compliancy and thermal resistance at pressures of 50psi will deflect to over 50% the original thickness. This high rate of compliancy allows the material to totally blanket the component, enhancing thermal transfer. The material has a very low compression set enabling the pad to be reused many times. Tflex™ 300, in achieving its stellar compliancy, does not sacrifice thermal performance. With a thermal conductivity of 1.2W/mK, low thermal resistances can be achieved at low pressures. Tflex™ 300-H is offered with a hard, metalized liner option for easy handling and improved rework. The metalized liner"s lower coefficient of friction also allows for easy assembly of parts that must slide together, such as a card into a chassis. It is suitable for flat panel displays, memory modules, set top box, lighting ballast, handheld electronics, optical disk drives and vibration dampening applications.

.

Extreme compliancy allows material to totally blanket components

.

Low compression set enables the pad to be reused many times

.

UL94V-0 Flammability rating

.

-40 to 160°C Operating temperature

.

±10% Thickness tolerance

.

0.56% Out-gassing TML

.

0.10% Out-gassing CVCM

.

600ppm/c Coefficient thermal expansion CTE
