APEM AV0630C900 按钮开关, SPST-常开, 关-开, 48 V, 200 mA, 拧紧

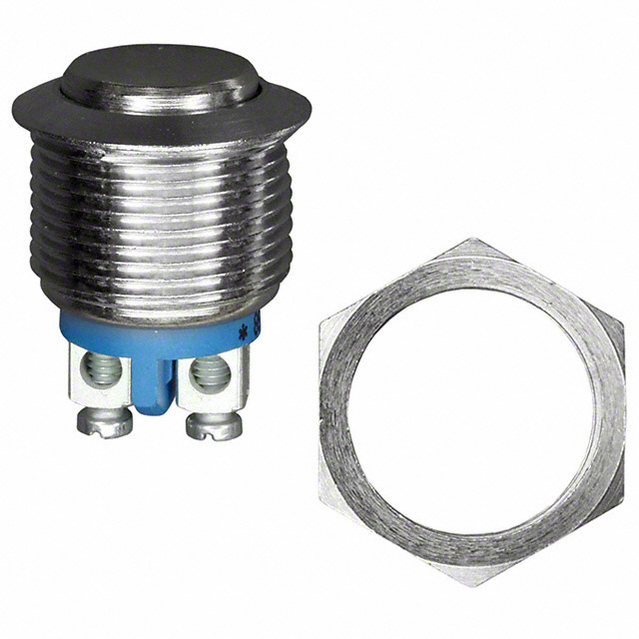

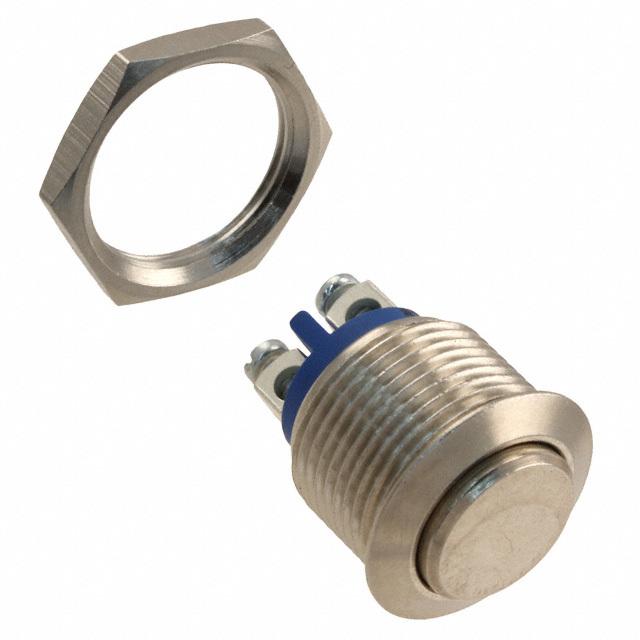

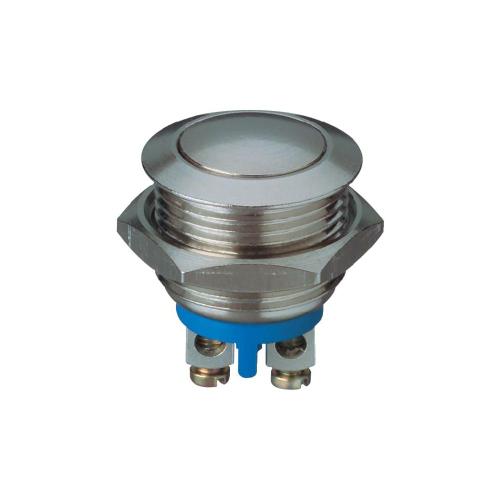

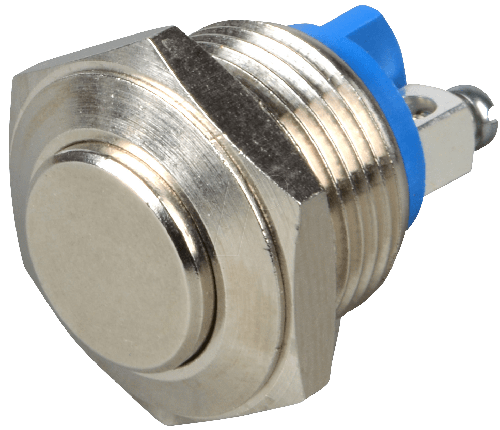

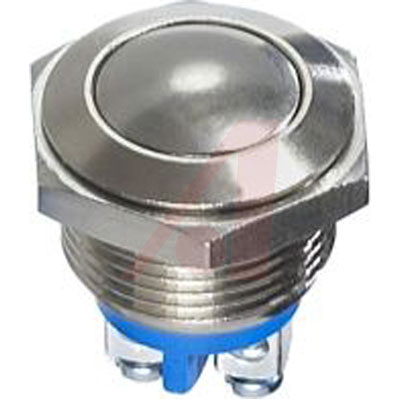

The is a single-pole single-throw SPST momentary snap action security Pushbutton Switch with screw terminal, NO function and flat actuator. The AV series has silver plated brass contact, nickel plated brass actuator/bushing and short PBT case. Anti-jamming construction provides reduced travel to prevent insertion of foreign parts. Contact and mechanism protected against crushing.
- .
- 16mm Bushing diameter
- .
- Attractive, robust and durable
- .
- Irremovable
- .
- Fire resistant, long life
触点电镀 Nickel
额定电压DC 48 V
接触器类型 Button
额定电流 0.2 A
绝缘电阻 1.00 GΩ
方向 Vertical
触点类型 SPST-NO
接触电阻 50.0 mΩ
触点额定电流 5.00 A
工作温度Max 70 ℃
工作温度Min -30 ℃
额定电压 48 VDC
额定电压DC Max 48 V
接触电阻Max 50 mΩ
安装方式 Screw, Panel
封装 -
封装 -
触点材质 Brass
工作温度 -30℃ ~ 70℃
产品生命周期 50000 Cycles
包装方式 Bulk
制造应用 Security, 安全
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AV0630C900 Apem Components | 当前型号 | 当前型号 |
AV0630C940 Apem Components | 类似代替 | AV0630C900和AV0630C940的区别 |
