AV402461J概述
PANASONIC ELECTRIC WORKS AV402461J 微动开关, SPDT, 焊接, 100 mA, 30 VDC

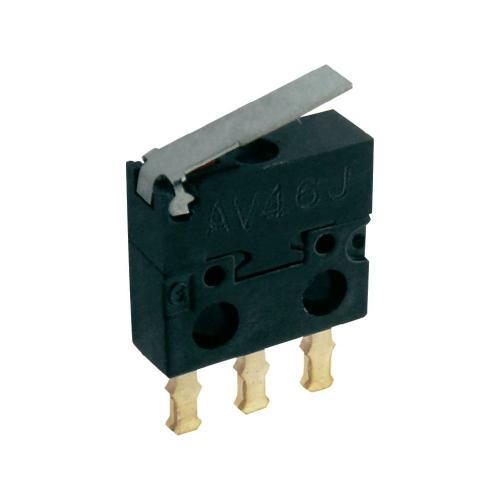

The is a small super-miniature lightweight Snap-action Switch with hinge lever actuator. It has gold-plated contact and solder terminal with mounting holes 1.65mm diameter. It can be mounted close together in any directions. It is suitable for compact visual equipment.
- .
- 100MR at 250VDC Minimum insulation resistance
- .
- 200mR Maximum initial contact resistance
AV402461J中文资料参数规格
技术参数
触点类型 SPDT
接触电阻 200 mΩ
额定电流Max 0.1A @30VDC
工作温度Max 80 ℃
工作温度Min -25 ℃
额定电压DC Max 30 V
封装参数
安装方式 Solder Lug
物理参数
触点材质 Stainless Steel
工作温度 -25℃ ~ 80℃
外壳材质 Plastic
其他
产品生命周期 Unknown
制造应用 Computers & Computer Peripherals, 消费电子产品, Portable Devices, 便携式器材, Audio, 音频, Building Automation, Consumer Electronics, 建筑自动化, 计算机和计算机周边
符合标准
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
