AA3M

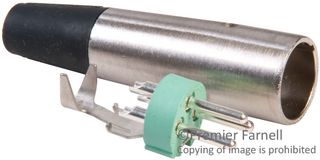

SWITCHCRAFT  AA3M  音频连接器, XLR型, 触点数:3

Male Cord Plug, 1000 Megohms Min. Insulation Resistance, 15 A Current Rating

* Rugged 1-piece cable clamp to relieve pulling and twisting stresses on terminations

* No screws flex relief retention system

* Integral bump shell grounding system

Plug insulation material molded thermoplastic.

得捷:
CONN RCPT MALE XLR 3P SOLDER CUP

贸泽:
XLR Connectors QG CONNECTOR

e络盟:
音频连接器, XLR型, 触点数:3

艾睿:
The best way to use video and audio in your project is by using the xlr connector AA3M audio and video connector from Switchcraft. This M connector&s;s 3 contacts that are made out of copper alloy and plated with silver. This connector has a single port. It has a maximum voltage rating of 125 VAC. It has a male type gender. It has a straight body orientation. This device has a maximum current rating of 15 A. AA3M is housed in thermoplastic. This product is 70.64 mm long with a diameter of 19.05 mm. Its 3 terminals use the solder termination method.

Allied Electronics:
Plug; Male Cord; 1000 Megohms Min.; 50 Milliohms Max.; 15 A; 125 VAC

Chip1Stop:
Conn XLR Connector M 3 POS Solder ST Cable Mount 3 Terminal 1 Port

Newark:
# SWITCHCRAFT  AA3M  XLR Audio Connector, 3 Contacts, Plug, Panel Mount, Silver Plated Contacts, Metal Body, AA Series

MASTER:
XLR Connector - 3 Contacts - Plug - Panel Mount - Silver Plated Contacts - Metal Body - AA Series.

Electro Sonic:
XLR Connector - 3 Contacts - Plug - Panel Mount - Silver Plated Contacts - Metal Body - AA Series.
