AS7C1026B-15JIN

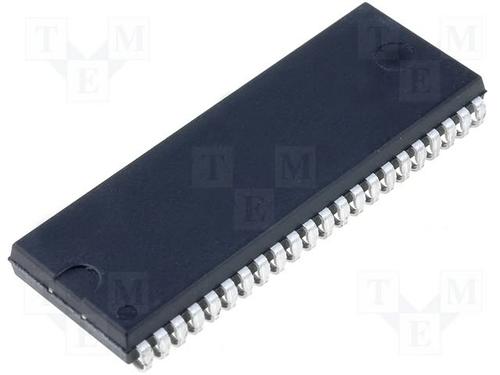

AS7C1026B-15JIN图片1

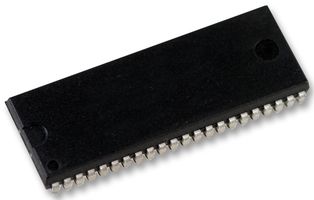

AS7C1026B-15JIN图片2

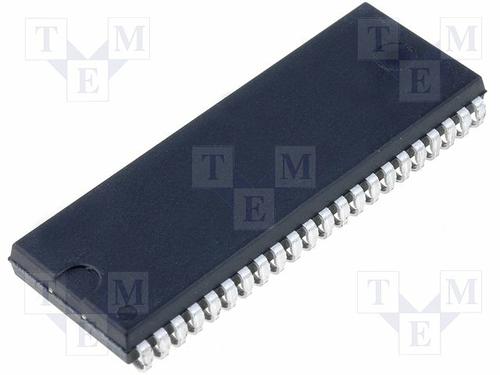

AS7C1026B-15JIN图片3
AS7C1026B-15JIN图片4
AS7C1026B-15JIN图片5
AS7C1026B-15JIN概述

ALLIANCE MEMORY  AS7C1026B-15JIN  芯片, 存储器, SRAM, 1MB, 64KX16, 5V, 44SOJ

The is a 5V 64k x 16-bit CMOS Static Random Access Memory SRAM organized as 65536 words x 16-bit. It offers 10/12/15/20ns address access time, 5/6/7/8ns output enable access time high speed. It features easy memory expansion with CE, OE inputs. It is designed for memory applications where fast data access, low power and simple interfacing are desired. When CE is high, the device enters standby mode. If inputs are still toggling, the device will consume ISB power. If the bus is static, then full standby power is reached. For example, the AS7C1026B is guaranteed not to exceed 55mW under nominal full standby conditions. A write cycle is accomplished by asserting write enable and chip enable. Data on the input pins I/O0 through I/O15 is written on the rising edge of WE or CE. To avoid bus contention, external devices should drive I/O pins only after outputs have been disabled with output enable or write enable.

.
Center power and ground pins for low noise
.
Low power consumption - ACTIVE - 605mW/maximum at 10ns
.
6T 0.18u CMOS technology
.
TTL-compatible, 3-state I/O
.
Latch-up current >=200mA
AS7C1026B-15JIN中文资料参数规格
技术参数

电源电压DC 4.50V min

工作电压 4.5V ~ 5.5V

针脚数 44

存取时间 15 ns

内存容量 1000000 B

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 4.5V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 4.5 V

封装参数

安装方式 Surface Mount

引脚数 44

封装 SOJ-44

外形尺寸

封装 SOJ-44

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Each

制造应用 计算机和计算机周边, Computers & Computer Peripherals, 工业, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

AS7C1026B-15JIN引脚图与封装图
AS7C1026B-15JIN引脚图
AS7C1026B-15JIN封装图
AS7C1026B-15JIN封装焊盘图
