AS-5002-A概述

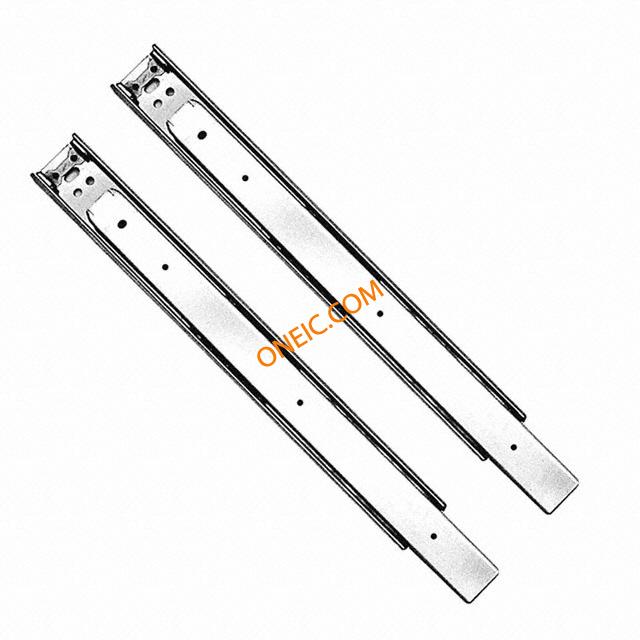

BUD INDUSTRIES  AS-5002-A  伸缩滑轨, 20英寸, 钢制

Steel Body, Zinc Plated Finish, Sliding Mechanisms

Side panel mounting holes are punched on 7/8" grid to allow total flexibility in mounting of components. Rear panel is fully adjustable from front to rear. Standard 19" front panels feature "Surface Shield" which provides surface protection for laying out drilling and punching positions.
.
* Optional Accessories.** Internal Chassis — 0.090" aluminum, natural finish. Can be mounted vertically or horizontally. Handles — chrome plated steel. Solid top or bottom cover — 0.050" aluminum, natural finish. Can also be used on bottom as full depth chassis for mounting components. Ventilated top or bottom cover — 0.050" aluminum, natural finish, 1/8" × 3/4" slots for maximum ventilation. Slides — two-piece slide, 20" long with 15" travel. Friction disconnect allows removal of chassis from cabinet or rack. Supplied in pairs, order mounting brackets separately.

Two-piece slide with stationary delrin balls at front of the cabinet member for stabilization in closed position. 3/4 extension, friction disconnect. Recommended for light load requirements. Max. chassis width 17".

* Front Panels: 1/8" Thick Mill Finish Aluminum with "Surface Shield" Protection

* Side and Rear Panels: 0.090" Aluminum

* Available in Two Depths B

* Finish: Natural; Other Finishes Available on Request

* Shipped Unassembled with All Necessary Assembly Hardware

AS-5002-A中文资料参数规格
外形尺寸

长度 508 mm

宽度 35.3 mm

高度 0.38 in

物理参数

材质 Steel

重量 1.04 kg

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8302423015

数据手册

在线购买AS-5002-A
型号: AS-5002-A
制造商: BUD
描述:BUD INDUSTRIES  AS-5002-A  伸缩滑轨, 20英寸, 钢制
