AN-2804

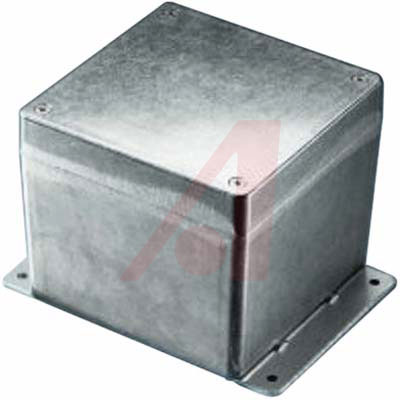

Natural Aluminum Wall Mount Die Cast Aluminum Box

Hardware kits with PCB mounting screws and copper-plated ground screw and washer are available, please contact your local Allied sales representative.

* Designed to IP65 of IEC529, UL5084 NEMA 1, 2 , 4, 4X, 12 and 13

* ADC-10 Aluminum Alloy

* Excellent Screening Properties

* Gasketed Covers Attach with M4 Stainless Steel Screws

* Internal Bosses for Mounting PCBs Horizontally

* Most Models Also Allow for Vertical PCB Mounting

* Mounts to Wall or Panel with #10 Size Screws Not Furnished

* Heavy-Duty 0.09" Thick External Wall Mounting Bracket

* Silicone Gaskets Installed in Natural Finish Boxes; Included But Not Installed in Black Finish Boxes

* Allows for the Mounting of the Box Without Having to Remove the Cover

* Mounts at Base to Allow Access to Internal Components Without Un-Mounting Box

* Natural or Smooth Black Powdercoat
