AN-2801

电气外壳 2.52 x 2.28 x 1.38 Natural Finish

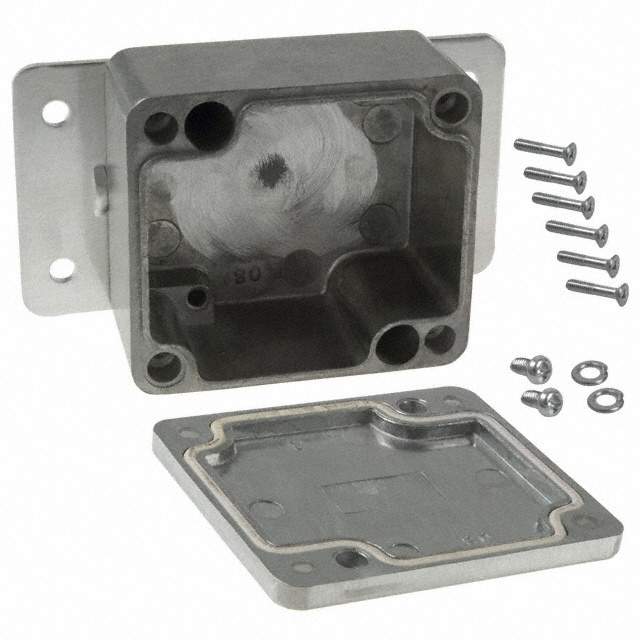

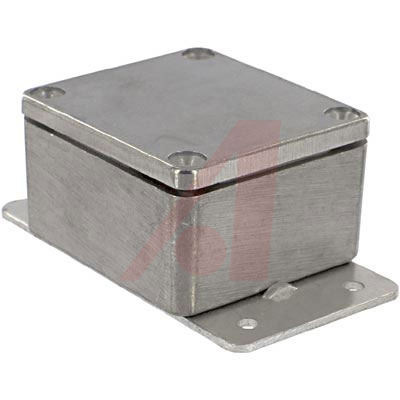

Aluminum Alloy Body Enclosures

Hardware is not included. Hardware kits with M-4 stainless steel, non-magnetic cover screws and copper plated ground screw and washer are available, please contact your local Allied sales representative.

* Designed to IP65 of IEC529 NEMA 1, 2 , 4, 4X, 12 and 13

* ADC-10 Aluminum Alloy

* Excellent Screening Properties

* Gasketed Covers Attach with M4 Stainless Steel Screws

* Internal Bosses for Mounting PCBs Horizontally

* Most Models Also Allow for Vertical PCB Mounting

* Mounts to Wall or Panel with #10 Size Screws Not Furnished

* Heavy Duty 0.90" Thick External Wall Mounting Bracket

* EPDM Gaskets Installed in Natural Finish Boxes; Included But Not Installed in Black Finish Boxes

* Allows for the Mounting of the Box Without Having to Remove the Cover

* Mounts at Base to Allow Access to Internal Components Without Un-Mounting Box

* Natural or Smooth Black Powdercoat
