ANALOG DEVICES ADP2504CPZ-REDYKIT Evaluation Kit for 600mA/1000mA, 2.5MHz Buck-Boost DC to DC Converter, 2.8V & 5V Output

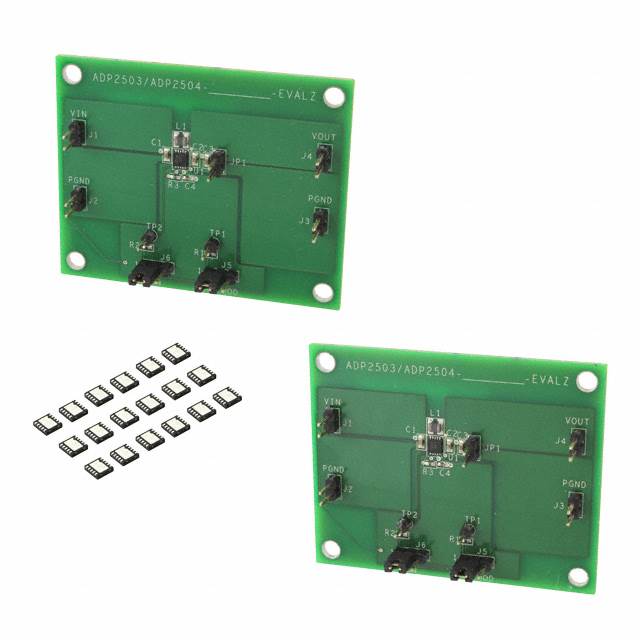

The is an "RedyKit" for the ADP2504 buck boost Converter. The ADP2504CPZ-REDYKIT allows simplified prototyping and evaluation and is available for every standard fixed output voltage option in the ADP2504 product family. The kit allows the user to evaluate the voltage options with one easy to order kit. The kit can be used in the engineering lab to evaluate required voltage options. If other voltage options must be evaluated, a different part from the kit can be easily soldered onto one of the evaluation boards supplied with the kit. The ADP2504CPZ-REDYKIT is available with fixed 2.8 V and 5.0 V evaluation boards. The kit also contains additional parts for prototyping. The kit enclosure, which contains individually packaged parts and the two evaluation boards, is packaged in an ESD foam pad.
- .
- It has two fully assembled and tested evaluation boards per kit
- .
- It provides full set of IC voltage options in each kit
- .
- It provides 3 samples of each IC voltage option packed in separate antistatic bags
- .
- This kit allows the user to quickly evaluate all IC voltage options
- .
- Only need to order one kit per product family
- .
- It provides simple device measurements, including line and load regulation
- .
- It provides easy access to external components
