ALZ52B48T

ALZ52B48T图片1
ALZ52B48T图片2
ALZ52B48T图片3

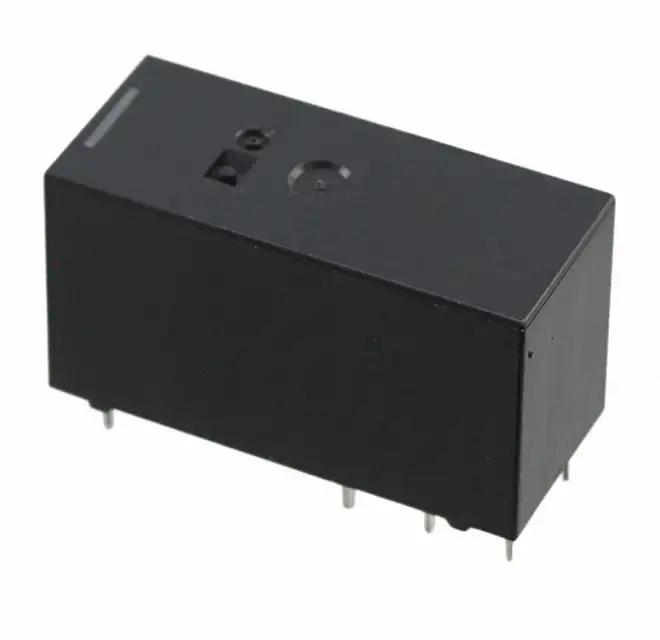

ALZ52B48T图片4
ALZ52B48T概述

Power Relay 48VDC 16A SPST-NO 28.8mm 12.5mm 15.7mm Through Hole

is manufactured by Electric and is categorized in the Power Relays category. ALZ52B48T is described as ALZ RELAY 1 FORM A 48V. Perfect Parts is a supplier of Relays and other Electromechanicals.


得捷:
RELAY GEN PURPOSE SPST 16A 48V


贸泽:
General Purpose Relays LZ Relays ALZ


Electro Sonic:
Power Relay 48VDC 16A SPST-NO28.8x12.5x15.7mm THT


ALZ52B48T中文资料参数规格
技术参数

线圈电压 48 VDC

线圈电阻 5.76 KΩ

额定电流Max 16 A

线圈电压DC 48 V

封装参数

安装方式 Through Hole

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

ALZ52B48T引脚图与封装图

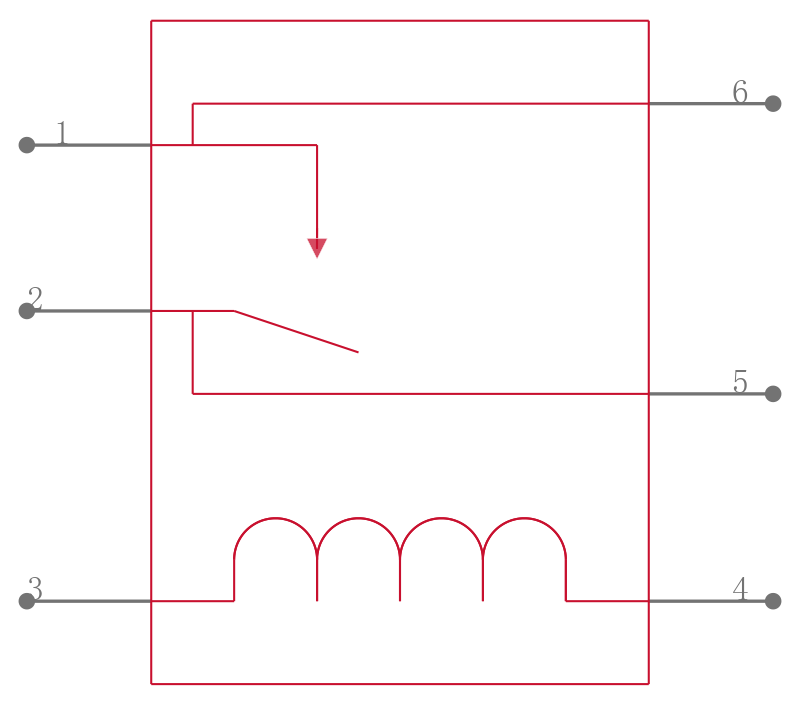

ALZ52B48T引脚图

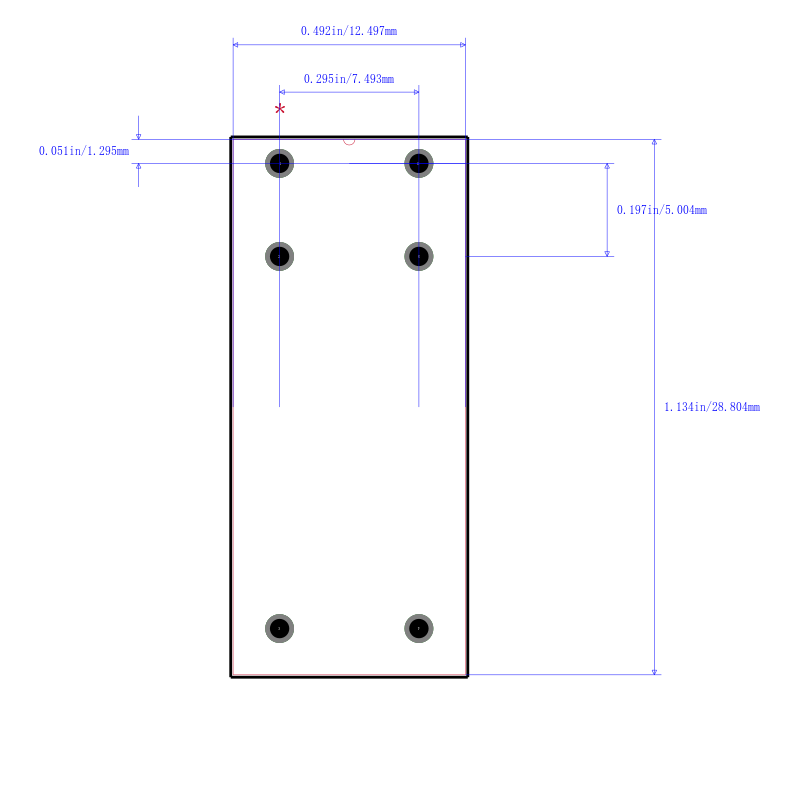

ALZ52B48T封装图

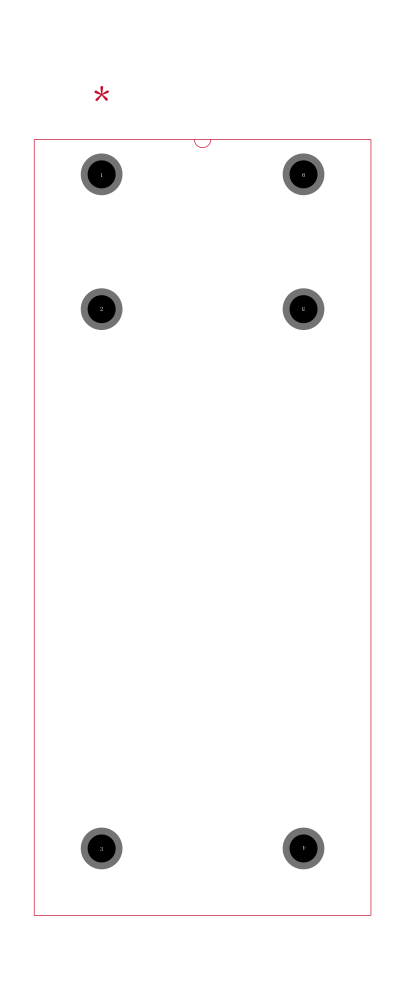

ALZ52B48T封装焊盘图
在线购买ALZ52B48T
型号: ALZ52B48T
制造商: Panasonic 松下
描述:Power Relay 48VDC 16A SPST-NO 28.8mm 12.5mm 15.7mm Through Hole
