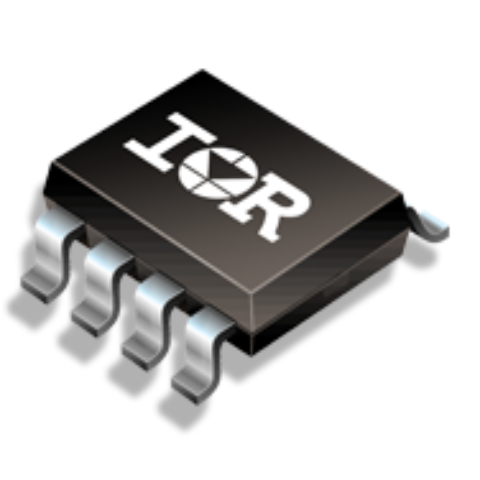

AUIPS1042G

P沟道 -12 V 1.3 W 10 nC 功率Mosfet 表面贴装 - MICRO-3

Description:

The AUIPS1041LR and are three terminal Intelligent Power Switches IPS featuring low side MOSFETs with over-current, over-temperature, ESD protection and drain to source active clamp. The AUIPS1042G is a dual channel device while the AUIPS1041 is a single channel. These devices offer protections and the high reliability required in harsh environments. Each switch provides efficient protection by turning OFF the power MOSFET when the temperature exceeds 165°C or when the drain current reaches 4.5A. The device restarts once the input is cycled. A serial resistance connected to the input provides the diagnostic. The avalanche capability is significantly enhanced by the active clamp and covers most inductive load demagnetizations.

Benefits:

.

Short-circuit protection

.

Over-temperature protection

.

12V and 24V application

.

Slow and fast devices
