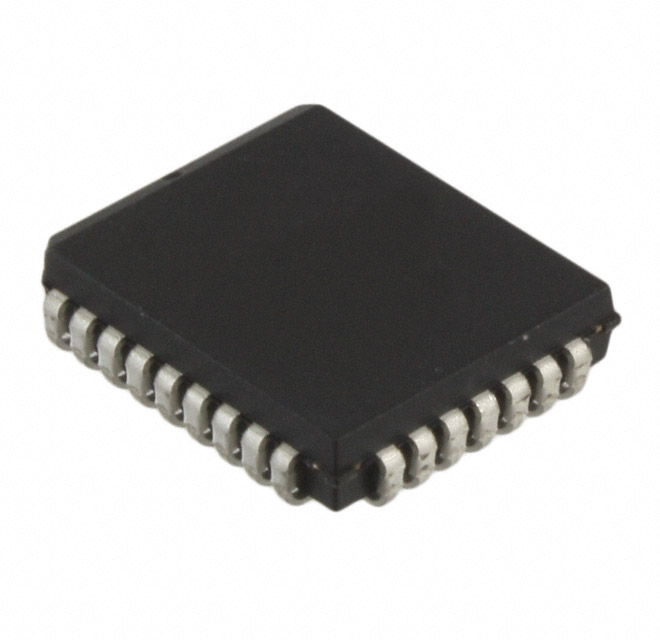

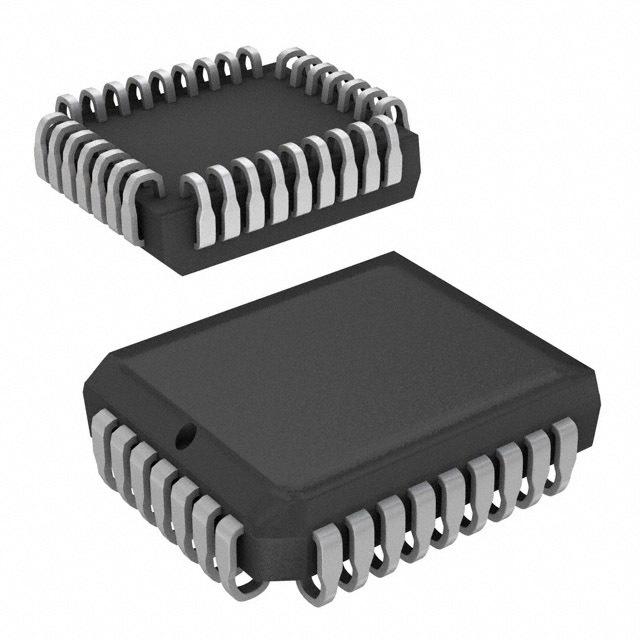

EPROM OTP 1M-bit 128K x 8 150ns 32Pin PLCC
Description
The AT27LV010A is a high performance, low power, low voltage 1,048,576-bit one time programmable read only memory OTP EPROM organized as 128K by 8 bits. It requires only one supply in the range of 3.0V to 3.6V in normal read mode operation, making it ideal for fast, portable systems using battery power.
Atmel’s innovative design techniques provide fast speeds that rival 5V parts while keeping the low power consumption of a 3.3V supply. At VCC = 3.0V, any byte can be accessed in less than 70 ns. With a typical power dissipation of only 18 mW at 5 MHz and VC C = 3.3V, the AT27LV010A consumes less than one fifth the power of a standard 5V EPROM. Standby mode supply current is typically less than 1 µA at 3.3V.
Features
• Fast Read Access Time - 70 ns
• Dual Voltage Range Operation
– Low Voltage Power Supply Range, 3.0V to 3.6V
– or Standard 5V ± 10% Supply Range
• Compatible with JEDEC Standard AT27C010
• Low Power CMOS Operation
– 20 µA max. less than 1 µA typical Standby for VCC = 3.6V
– 29 mW max. Active at 5 MHz for VCC = 3.6V
• JEDEC Standard Packages
– 32-Lead PLCC
– 32-Lead TSOP 8 x 20 mm
– 32-Lead VSOP 8 x 14 mm
• High Reliability CMOS Technology
– 2,000V ESD Protection
– 200 mA Latchup Immunity
• Rapid™ Programming Algorithm - 100 µs/byte typical
• CMOS and TTL Compatible Inputs and Outputs
– JEDEC Standard for LVTTL
• Integrated Product Identification Code
• Commercial and Industrial Temperature Ranges
