AJT41L8841-011

METZ CONNECT  AJT41L8841-011  模块连接器, RJ45, AJT41L系列, 插座, 8 触点, 8 路, 4 端口

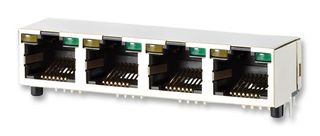

The AJT41L series multi-port 1 x 4 8P8C RJ45 shielded Modular Connector for PC boards with side entry. It has CuSn contact material with selective 5-microinch gold contact surface and copper alloy shield material with nickel shield surface.

.

Solderable

.

LED yellow/green, top latch

.

1A Current rating

.

150V Voltage rating

.

500MR Insulation resistance

.

50mR Contact resistance

.

* IP20 Protection rating

.

-40 to 85°C Temperature range
