TEXAS INSTRUMENTS ADC081S021CIMF 模数转换器, 8 bit, 200 kSPS, 单, 2.7 V, 5.25 V, SOT-23
The is a 1-channel 8-bit CMOS Analog-to-digital Converter ADC with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC081S021 is fully specified over a sample rate range of 50 to 200 kSPS. The converter is based upon successive-approximation register architecture with an internal track-and-hold circuit. The output serial data is straight binary and is compatible with several standards such as SPI, QSPI, MICROWIRE and many common DSP serial interfaces. It operates with a single supply that can range from 2.7 to 5.25V. The power-down feature reduces the power consumption to as low as 2.6µW using a 5.25V supply.
电源电压DC 2.70V min
供电电流 1.47 mA
电路数 1
通道数 1
针脚数 6
位数 8
采样率 200 ksps
功耗 1.30 mW
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
输入通道数 1
电源电压 2.7V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 2.7 V
输入电压 5.25 V
安装方式 Surface Mount
引脚数 6

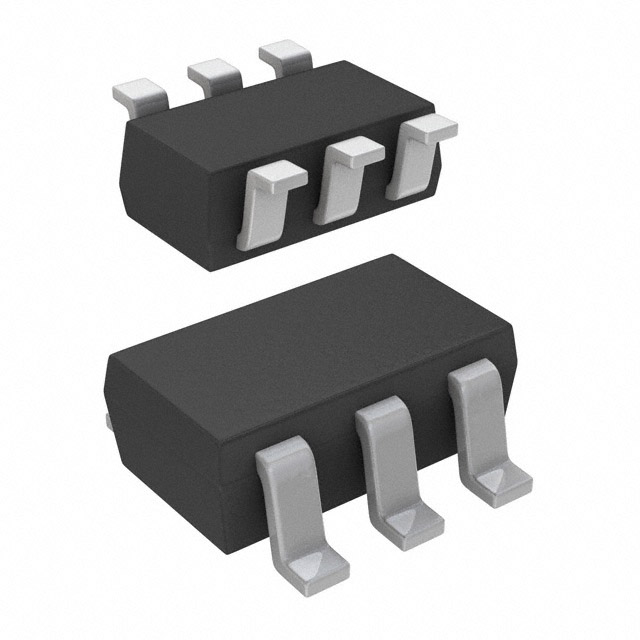

封装 SOT-23-6
高度 1.3 mm
封装 SOT-23-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 传感与仪器, 自动化与过程控制, 便携式器材
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADC081S021CIMF TI 德州仪器 | 当前型号 | 当前型号 |
ADC081S021CIMFX/NOPB 德州仪器 | 完全替代 | ADC081S021CIMF和ADC081S021CIMFX/NOPB的区别 |
ADC081S021CIMF/NOPB 德州仪器 | 类似代替 | ADC081S021CIMF和ADC081S021CIMF/NOPB的区别 |
ADC081S101CIMF/NOPB 德州仪器 | 类似代替 | ADC081S021CIMF和ADC081S101CIMF/NOPB的区别 |
